Stainless Steel Welded Wire Mesh

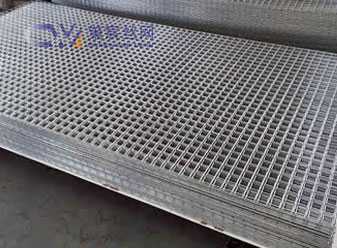

Type: Welded Mesh Roll & Welded Mesh Sheet
Material: SS 201, 202, 304, 304L, 316, 316L, 321, 430, ect
Wire diameter: 0.5 - 6mm
Opening: 20-100mm
Width: 0.4 - 5m
Length: 5m,10m,20m,30m,50m etc.
Stainless steel welded wire mesh is a type of wire mesh made from stainless steel wires that are welded together at their intersections. This material is commonly used for a variety of applications due to its durability, corrosion resistance, and strength. It is typically found in industries such as construction, agriculture, automotive, and manufacturing.

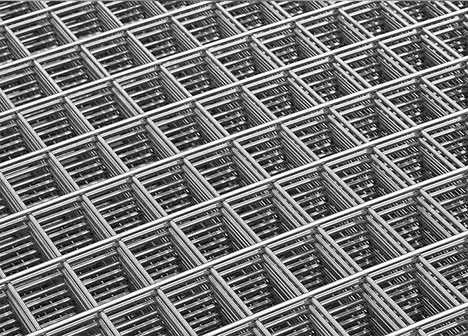

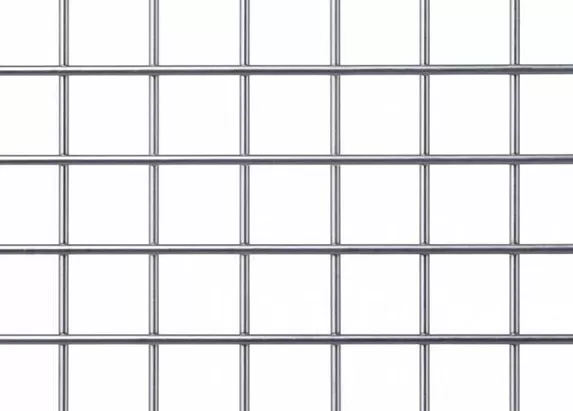

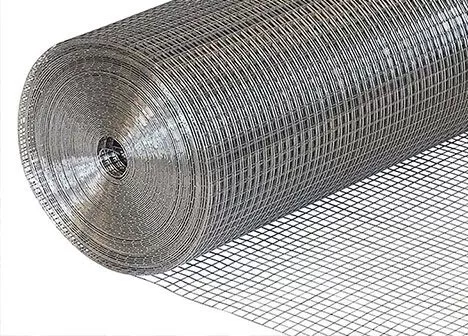

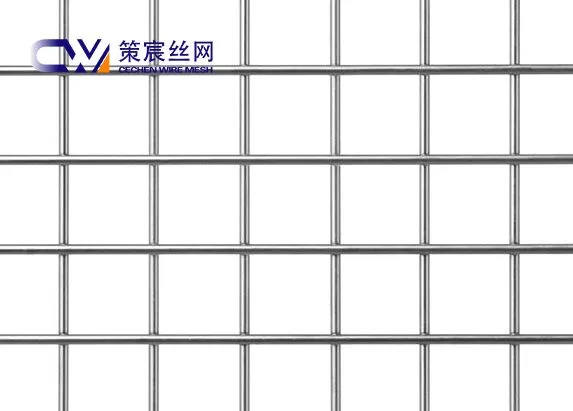

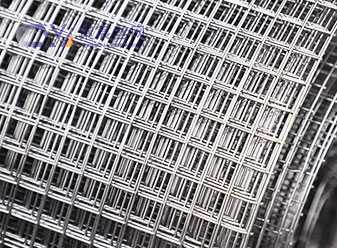

Stainless steel welded wire mesh is a grid metal product with uniform openings that are usually square or rectangular. It is usually by welding the weft wires to the pre-laid warp wires one by one by an electric welding machine, and each warp wire and the weft wire have a solid welding spot at the intersection. Welded mesh with smaller wire diameter and openings is also called hardware cloth. The delivery conditions are usually rolls, sheets or panels, depending on the wire diameter and customer requirements.
| Welded Stainless Steel Wire Mesh | ||
| Opening | Wire Diameter | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Cechen stainless steel welded mesh can be customized according to customer needs. If you have special material, mesh, width, or length requirements, please contact us. Usually there is a minimum order quantity recommendation for customized services. At the same time, we can also perform deep processing customization, making stainless steel mesh into mesh or mesh strips, and can also produce according to customer drawings or samples.

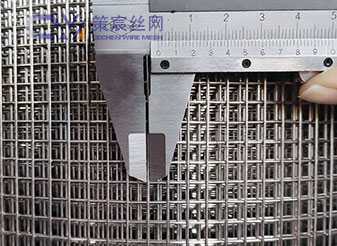

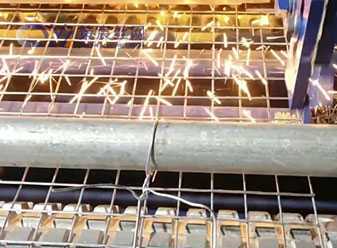

Our automatic welding machines can set up any mesh sizes in the market, no matter it's standard type or special requirement. The fully digitally controlled techniques and well-trained staff can ensure the even mesh size and the accurate dimensions of panels.
● Strong Corrosion Resistance
● High Strength and Durability
● Oxidation Resistance
● Easy to Clean and Maintain
● Anti-Theft Performance
● UV Resistance
● Aesthetic Appeal of the environment
● Flexibility and Customization
● Environmental Friendliness
● Compression Resistance and Load-Bearing Capacity
The manufacturing process of Stainless Steel Welded Wire Mesh involves selecting high-quality stainless steel wires, welding them together to form a grid pattern, cutting and shaping the mesh, applying surface treatments if required, and ensuring quality control throughout the process. The finished product is then packaged and distributed to customers for various applications such as fencing, construction, reinforcement, and industrial uses.
● Material Selection: High-quality stainless steel wires are chosen for the manufacturing process. The selection of the stainless steel grade depends on the specific application requirements, with popular choices including AISI 304, 316, or 316L.
● Wire Preparation: The stainless steel wires are typically drawn from stainless steel rod or coil stock. The wires are cleaned and straightened to ensure they are free from any contaminants or deformations.
● Welding Process: The welding process is the core step in manufacturing Stainless Steel Welded Wire Mesh. The wires are fed into a welding machine, where they are intersected at right angles and welded together at the points of contact. The welding can be done through various methods such as resistance welding or fusion welding, depending on the specific manufacturing equipment and requirements.
● Grid Pattern Formation: The welded wires form a grid pattern, with the spacing between the wires determined by the desired mesh size. The size of the grid openings can be customized based on the intended application, ranging from fine meshes to larger openings.

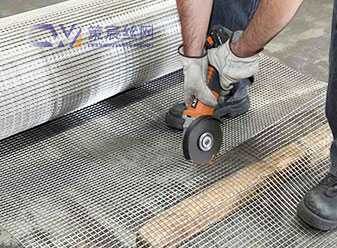

● Cutting and Shaping: After the welding process, the Stainless Steel Welded Wire Mesh is cut into the desired dimensions. It can be cut into rolls, sheets, panels, or customized shapes depending on the specific application requirements.
● Surface Treatment: In some cases, Stainless Steel Welded Wire Mesh may undergo additional surface treatments to enhance its properties. This can include processes such as pickling, passivation, or coating to improve corrosion resistance or provide specific surface characteristics.

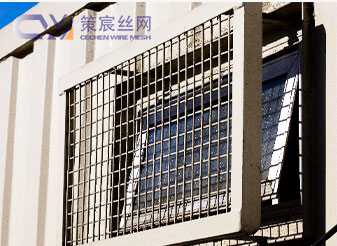

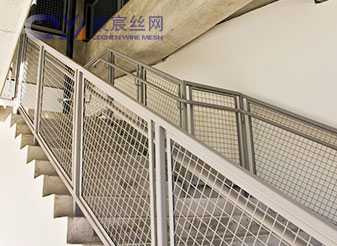

● Construction: Used for construction site fencing, decorative barriers, and building protection.

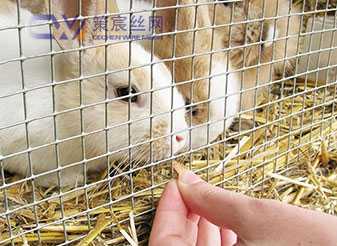

● Agriculture: Used as agricultural fencing, animal protection nets, and fruit orchard protection nets.

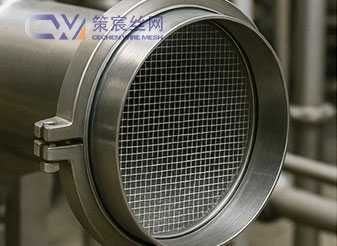

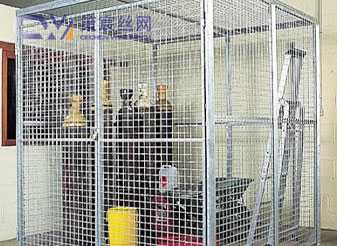

● Industry: Used in filtering, isolation screens, machine protection nets, etc.
● Security: Used in high-security areas such as prisons, warehouses, and military bases.
● Gardening and Landscaping: Used for garden fences, landscape decoration, and protective nets.
● Transportation and Highways: Used in highway guardrails, bridge protective nets, etc.
