Stainless Steel Twill Weave Wire Mesh
Twill Weave Wire Mesh
Material: SS 304, 316, 316L, Brass, Nickel, Monel, etc.
Weave Type: Plain Twill, Dutch Twill, Reverse Dutch Twill
Mesh: 10 – 500 mesh
Wire Diameter: 0.03 mm – 3.0 mm
Width Max: 3 meters (customizable width)
Surface Treatmen: Plain, Electropolished, Heat Treated

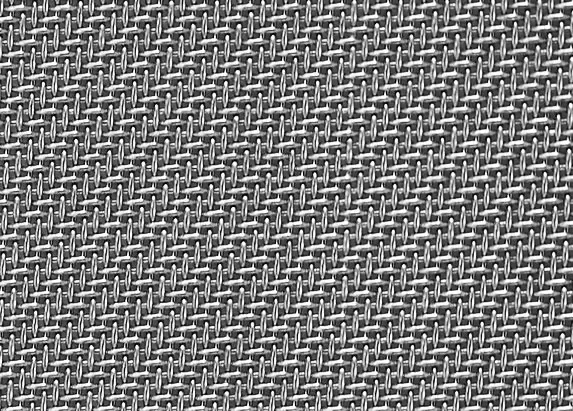

Twill Weave Wire Mesh is a high-performance woven wire mesh with a unique twill rib pattern that provides exceptional strength, stability, and filtration accuracy. Its unique interlaced structure (each weft wire intersperses above and below two or more warp wires) makes it ideal for demanding industrial uses, including oil and gas filtration, chemical processing, and aerospace applications.
| Mesh count | Wire Dia | Width of Opening | Open area | ||
| Inches | mm | Inches | mm | % | |
| 1X1 | 0.157 | 4 | 0.84 | 21.4 | 71 |
| 4X4 | 0.063 | 1.6 | 0.187 | 4.75 | 56 |
| 8X8 | 0.043 | 1.1 | 0.08 | 2.08 | 42 |
| 10X10 | 0.039 | 1 | 0.06 | 1.54 | 36 |
| 12X12 | 0.023 | 0.584 | 0.06 | 1.52 | 51.8 |
| 14X14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 |
| 16X16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 |
| 18X18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 |
| 20X20 | 0.016 | 0.406 | 0.034 | 0.86 | 46.2 |
| 24X24 | 0.014 | 0.356 | 0.0277 | 0.7 | 44.2 |
| 30X30 | 0.012 | 0.305 | 0.0213 | 0.54 | 40.8 |
| 35X35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 |
| 40X40 | 0.01 | 0.254 | 0.015 | 0.38 | 36 |
| 50X50 | 0.008 | 0.203 | 0.012 | 0.31 | 36 |
| 60X60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5 |
| 70X70 | 0.0065 | 0.165 | 0.0078 | 0.2 | 29.8 |
| 80X80 | 0.0055 | 0.14 | 0.007 | 0.18 | 31.4 |
| 100X100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 |
| 120X120 | 0.0037 | 0.094 | 0.0046 | 0.1168 | 30.7 |
| 150X150 | 0.026 | 0.066 | 0.0041 | 0.1041 | 37.4 |
| 180X180 | 0.023 | 0.0584 | 0.0033 | 0.0838 | 34.7 |
| 200X200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 | 33.6 |
| 250X250 | 0.0016 | 0.406 | 0.0024 | 0.061 | 36 |
| 300X300 | 0.0015 | 0.0381 | 0.0018 | 0.0457 | 29.7 |
| 325X325 | 0.0014 | 0.0356 | 0.0017 | 0.0432 | 30 |
| 400X400 | 0.001 | 0.0254 | 0.0015 | 0.037 | 36 |
| 500X500 | 0.001 | 0.0254 | 0.001 | 0.0254 | 25 |
| 635X635 | 0.0008 | 0.0203 | 0.0008 | 0.0203 | 25 |

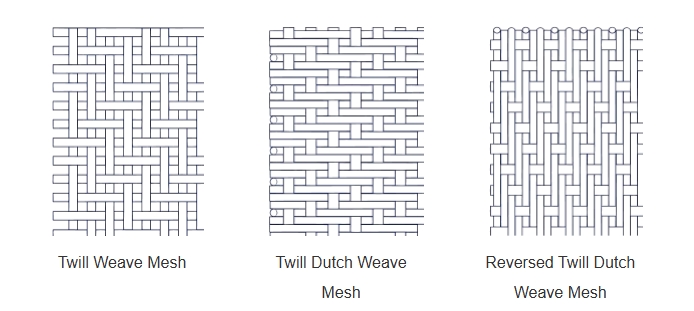

Weave Type
Superior Strength – Reinforced weave structure supports thicker wires, ideal for high-pressure environments.
Smooth Filtration – Twill pattern reduces clogging and improves flow efficiency.
Fine Particle Retention – Available in ultra-fine mesh (up to 500 mesh) for precision filtration.
Corrosion Resistant – Made from stainless steel (304, 316, 316L), nickel, brass, and other alloys.
Customizable – We offer custom sizes, materials, and weave types to meet specific needs.
Oil and Gas Industry
Drilling Platform Mud Filtration
High Pressure Hydraulic Filters
Refinery Catalyst Recovery
Chemical and Pharmaceutical
Acid and Alkali Filtration
Powder Screening in Pharmaceutical Production
Food and Beverage Processing
Edible Oil Clarification
Sugar and Flour Screening
Aerospace and Automotive
Fuel Filtration Systems
Intake Mesh Engines
Water Treatment
Wastewater Filtration
Desalination Plant Filters
Why Choose Our Twill Woven Metal Mesh
Premium Materials – Made from certified stainless steel and alloys for long-lasting performance.
Precision Weaving Technology – Ensures consistent mesh for reliable filtration.
Custom Manufacturing – We offer custom sizes, shapes, and materials based on your needs.
Strict Quality Control – Passed ISO 9001 certification system to ensure reliable product quality
Fast Global Shipping – Samples and bulk orders can be shipped worldwide.
