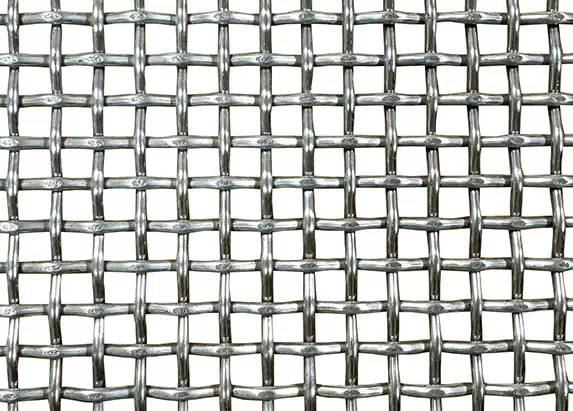

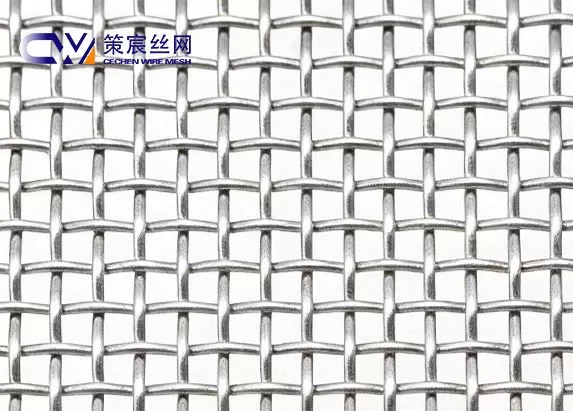

Stainless Steel Square Wire Mesh
Stainless steel square mesh is a commonly used stainless steel metal mesh, usually braided by high-quality stainless steel wire, the structure is composed of warp and weft wire interwoven, the main feature is the warp and weft mesh count of the same, thus forming a uniform square hole.
Stainless steel square mesh is uniform and smooth, acid, alkali, high-temperature resistance, high strength, good wear resistance, it is an important material for filtering gas, liquid or separating other media.
All the Square mesh quality control based on ASTM E 2016-15 Standard and raw materials based on ASTM A580-14 standard.

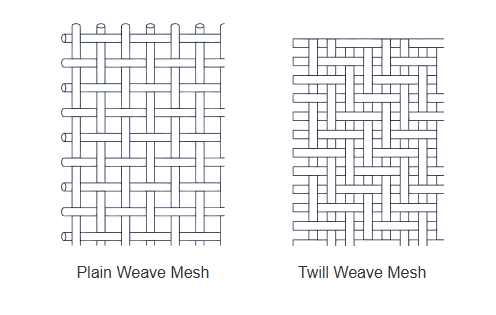

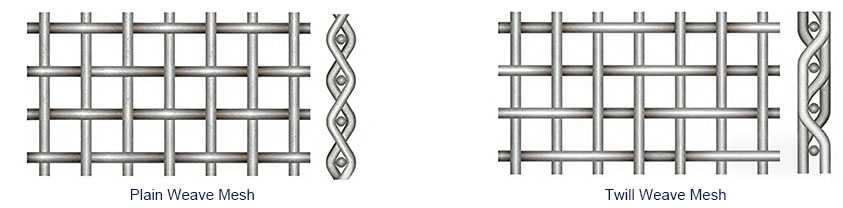

The main weaving methods of stainless steel square mesh are plain weave and twill weave.
The difference between the two types is that the weaving structure and appearance are different, and there are also differences in use. At present, we provide stainless steel square mesh mesh in the range of 1-800 mesh, we will choose the right weaving process for you according to your requests.
The main materials of stainless steel square mesh provided by Cechen are AISI SS 304, 304L, 316, 316L, 430 etc. In addition to stainless steel, square mesh of the following materials can also be produced according to your requirements.
● Alloy Mesh: Monel, Inconel, Hastelloy
● Copper: Copper, Brass, Bronze, Phosphor bronze.
● Special Materials: Iron, aluminium, nickel, zirconium, titanium, tungsten, molybdenum, tantalum, etc.
We provide all the above wire mesh materials, customized as your request, you will find the best wire mesh products here to meet your requests, looking for your interests.
Note: CeChen material standards are ASTM, GB/T, DN, JIS, if there is no special requirements, the raw materials always meet ASTM A580-14, mesh quality control according to ASTM E2016-15.
| Plain /Twill Square Woven Mesh | |||||
| Mesh count | Wire Dia | Width of Opening | Open area | ||
| Inches | mm | Inches | mm | % | |
| 1X1 | 0.157 | 4 | 0.84 | 21.4 | 71 |
| 4X4 | 0.063 | 1.6 | 0.187 | 4.75 | 56 |
| 8X8 | 0.043 | 1.1 | 0.08 | 2.08 | 42 |
| 10X10 | 0.039 | 1 | 0.06 | 1.54 | 36 |
| 12X12 | 0.023 | 0.584 | 0.06 | 1.52 | 51.8 |
| 14X14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 |
| 16X16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 |
| 18X18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 |
| 20X20 | 0.016 | 0.406 | 0.034 | 0.86 | 46.2 |
| 24X24 | 0.014 | 0.356 | 0.0277 | 0.7 | 44.2 |
| 30X30 | 0.012 | 0.305 | 0.0213 | 0.54 | 40.8 |
| 35X35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 |
| 40X40 | 0.01 | 0.254 | 0.015 | 0.38 | 36 |
| 50X50 | 0.008 | 0.203 | 0.012 | 0.31 | 36 |
| 60X60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5 |
| 70X70 | 0.0065 | 0.165 | 0.0078 | 0.2 | 29.8 |
| 80X80 | 0.0055 | 0.14 | 0.007 | 0.18 | 31.4 |
| 100X100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 |
| 120X120 | 0.0037 | 0.094 | 0.0046 | 0.1168 | 30.7 |
| 150X150 | 0.026 | 0.066 | 0.0041 | 0.1041 | 37.4 |
| 180X180 | 0.023 | 0.0584 | 0.0033 | 0.0838 | 34.7 |
| 200X200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 | 33.6 |
| 250X250 | 0.0016 | 0.406 | 0.0024 | 0.061 | 36 |
| 300X300 | 0.0015 | 0.0381 | 0.0018 | 0.0457 | 29.7 |
| 325X325 | 0.0014 | 0.0356 | 0.0017 | 0.0432 | 30 |
| 400X400 | 0.001 | 0.0254 | 0.0015 | 0.037 | 36 |
| 500X500 | 0.001 | 0.0254 | 0.001 | 0.0254 | 25 |
| 635X635 | 0.0008 | 0.0203 | 0.0008 | 0.0203 | 25 |
● Good filter ability: smooth and uniform, can effectively separate and filter various substances.
● Good durability: oxidation resistance and corrosion resistance, acid and alkali resistance, high temperature resistance.
● High tensile strength: good mechanical strength and tensile strength
● Customized: Easy to process and versatile to meet specific applications

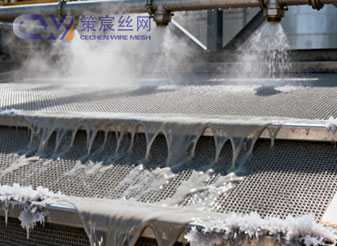

Stainless steel square mesh, a type of wire mesh characterized by its square openings, has a variety of applications across different industries.
● Water Treatment: Used in water filtration systems to separate particulates from liquids.

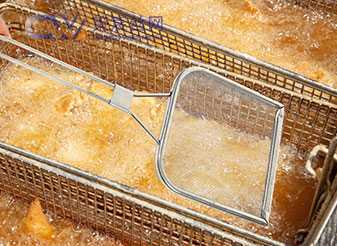

● Food and Beverage Industry: Employed for filtering liquids like juices and oils, ensuring product purity.
● Chemical Processing: Utilized for separating solids from liquids in various chemical applications.

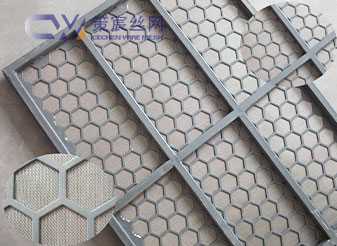

● Shale shaker Screen: Screening and sieving is essential to many processes throughout manufacturing industry. Shale shaker screen mesh is normally square mesh or oblong mesh.

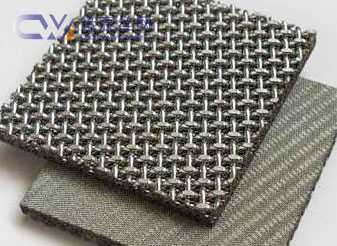

● Sintered Mesh Media: Sintered Mesh are composed by Square mesh and Dutch weave mesh, which owns high efficiency and accurate aperture with 304L and 316L
● Polymer/Plastic Filtration: Extrude screens made from stainless steel square mesh are widely used in plastic and rubber processing machinery. It is a single or multi-layer with plain weave or twill weave. Circle, round, oval, rectangular, cones, or other special shape can be made with normal mesh spec.20-500mesh.
Cechen stainless steel square mesh can be customized according to customer needs, such as you have special mesh count or width, length requirements we can adjust the looms to weave. There is usually a minimum order quantity to recommend. At the same time, we can also carry out further processing customization, supply strips and discs made of stainless steel square mesh, we can also produce according to customer’s drawing or samples.
The packing of Stainless Steel Square Mesh typically involves the following methods to ensure protection during transportation and storage:
● Rolls: Most Stainless Steel Square Mesh is rolled into cylindrical shapes, which makes it easier to handle and transport. The diameter of the roll can vary based on the mesh size and wire diameter.
● Flat Sheets: For certain applications, Stainless Square Mesh may be packaged as flat sheets. These sheets are usually separated by protective layers (like cardboard or plastic) to prevent scratches or damage.
● Plastic Wrap: Rolls or sheets are often wrapped in plastic to protect against moisture and dust during shipping and storage.
● Custom Packaging: Depending on the customer's requirements, stainless steel wire mesh may be packaged in custom boxes or crates, especially for large orders or specific applications.
● Labelling: Each package typically includes labels detailing product specifications, such as mesh size, wire diameter, material grade, and quantity.
● Pallets: For bulk orders, rolls or sheets may be placed on wooden or plastic pallets for easier handling and transport.
The specific packing method can vary based on the manufacturer, order size, and customer preferences. If you need more detailed information or have specific packing requirements in mind, feel free to ask!
