Material: 304/316/316L
Wire Diameter: 0.03-0.1mm. Thick wire diameter (high ink volume), thin wire diameter (high precision)
Low Mesh (10-100 mesh): coarse pattern, high ink volume (such as fabric T-shirt printing).
Medium Mesh (100-200 mesh): general type (plastic, glass).
High Mesh (200-500 mesh): fine pattern (electronic products, high-precision ceramics)

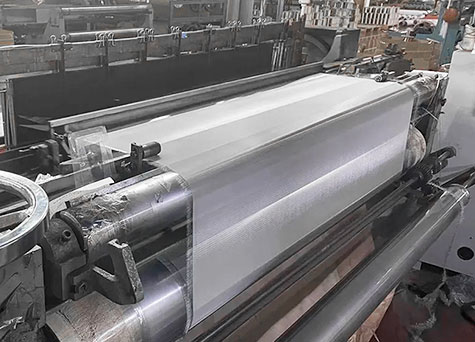

Weaving Method: plain, twill
Our Advantage:
Support Customization
Free Test Samples
Quick Response Within 12 Hours
Quality Guaranteed By SGS
Comply With European and American Standards
Directly Supplied By Our Factory
Products Description

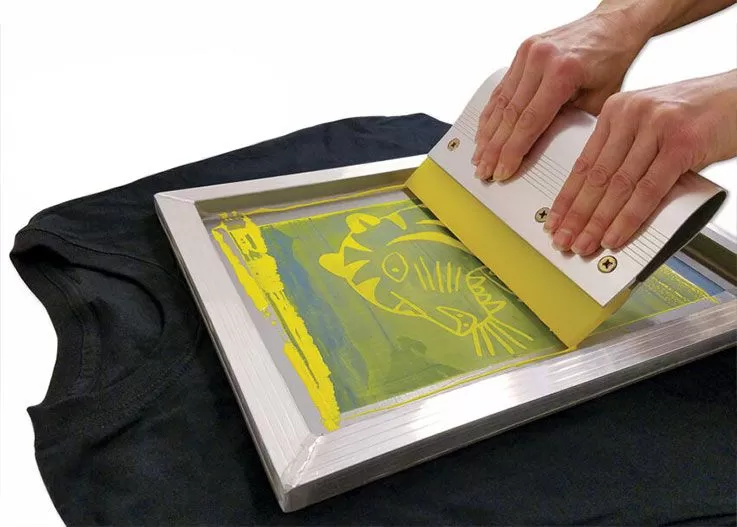

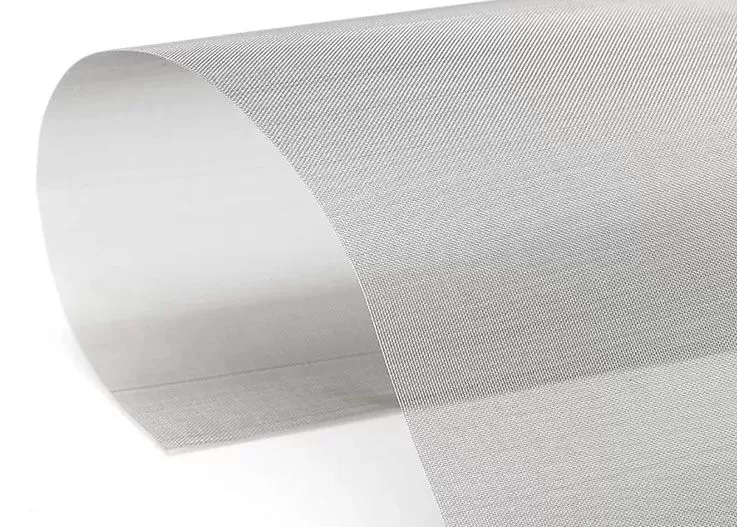

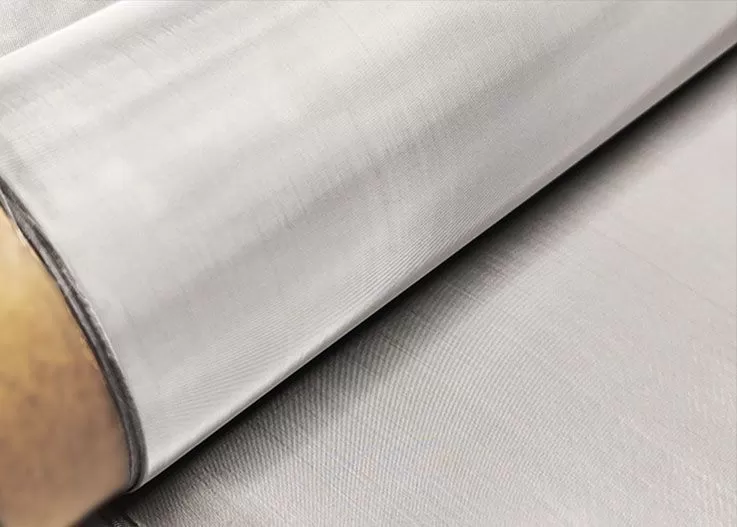

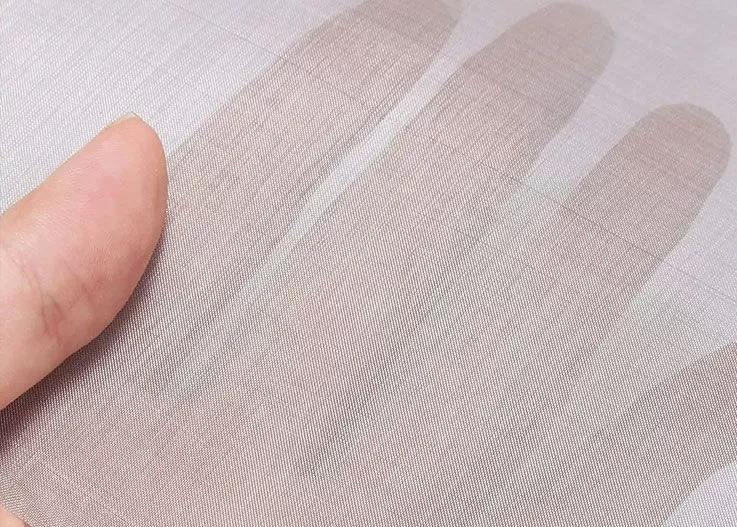

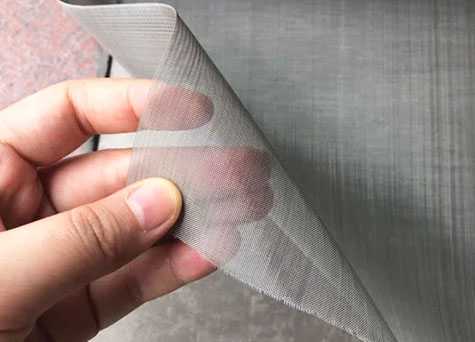

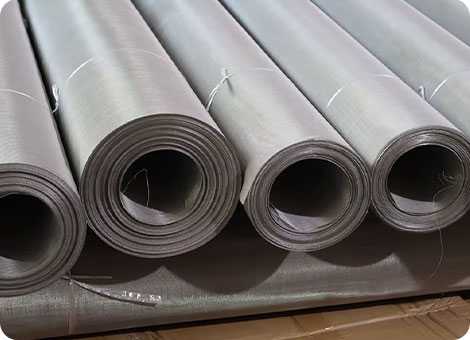

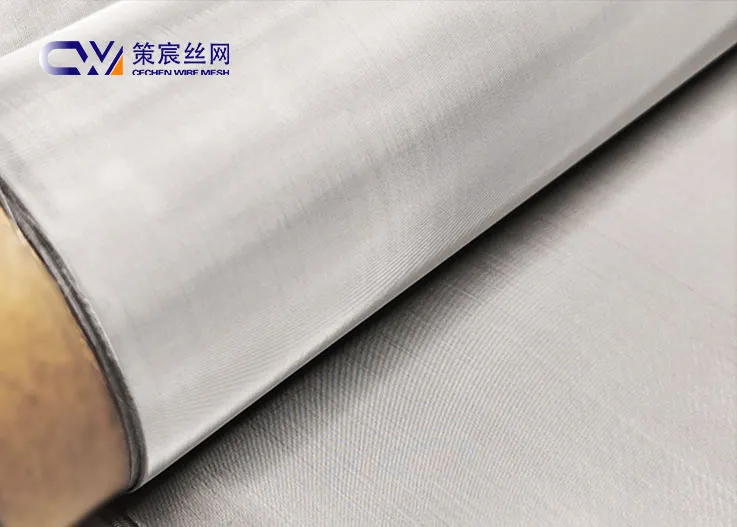

Stainless steel printing mesh (also called screen printing mesh, printing screen) is often used in screen printing process, with corrosion resistance, high strength, stable tension and other characteristics. Stainless steel printing screen is a screen with uniform mesh. The ink is squeezed through the mesh by a scraper to form a pattern on the substrate. It is widely used in the printing of fabrics, plastics, metals and other materials.

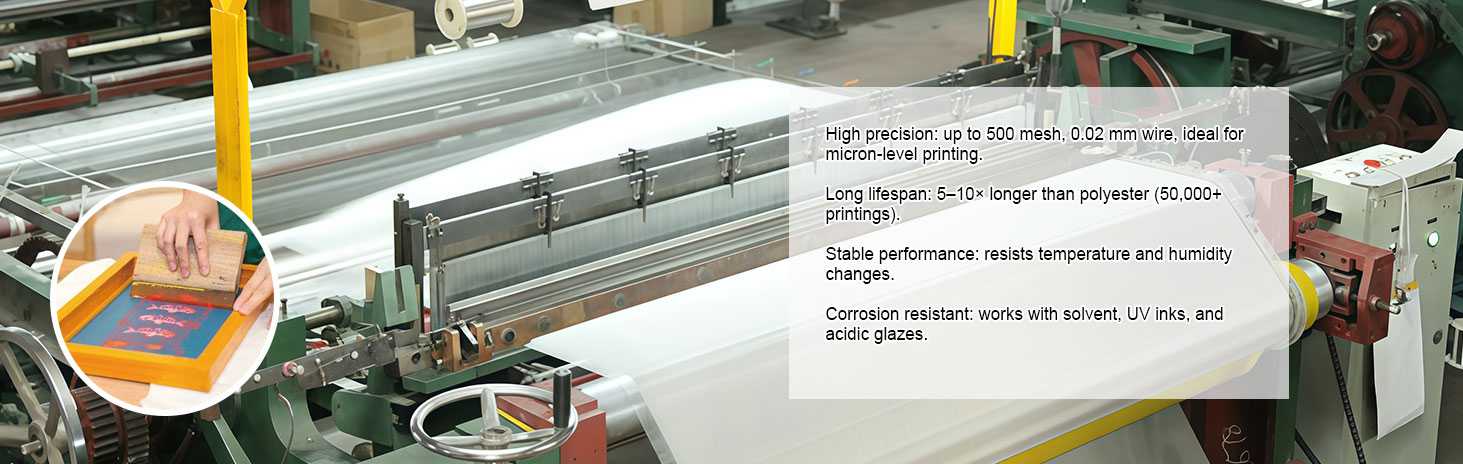

● Ultra-high precision: the mesh count can reach more than 500 meshes, the minimum wire diameter is 0.02mm, suitable for micron-level patterns (such as PCB circuit printing).
● Ultra-long life: wear-resistant and stretch-resistant, the lifespan is 5-10 times that of polyester screen (more than 50,000 printings).
● Strong stability: not affected by temperature and humidity, excellent tension retention, avoiding printing dislocation.
● Corrosion resistance: suitable for solvent-based inks, UV inks and acidic ceramic glazes.
| Mesh Count (mesh/inch) | Wire Diameter (mm) | Aperture (μm) | Open Area (%) | Mesh Thickness (μm) | Typical Applications |
| 80 | 0.10 | 217 | 47% | 100 | Coarse patterns, ceramic printing, glass printing |
| 120 | 0.08 | 132 | 41% | 80 | General graphics, paper, plastic printing |
| 150 | 0.06 | 109 | 43% | 60 | Label and text printing |
| 200 | 0.05 | 77 | 37% | 50 | Solar cells, general electronics |
| 250 | 0.04 | 62 | 38% | 40 | Thin film circuits, finer patterns |
| 300 | 0.035 | 49 | 34% | 35 | PCB, high precision printing |
| 325 | 0.03 | 47 | 38% | 30 | SMT stencil, IC printing |
| 350 | 0.03 | 42 | 36% | 30 | Ultra-fine line printing |
| 400 | 0.025 | 38 | 37% | 25 | Microelectronic precision |
| 500 | 0.020 | 31 | 36% | 20 | Advanced electronics, micro-pattern printing |
● Customized service: support non-standard mesh (such as 425 mesh, 530 mesh) and special wire diameter.

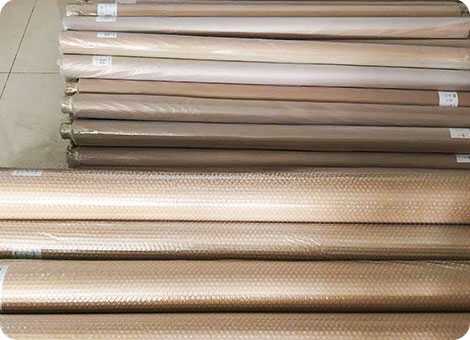

● Fast delivery: regular specifications are shipped in 3 days, and high-precision screens are completed in 7 days.
Printing screen is a precision tool that controls ink transfer through the mesh. It is widely used in high-precision fields such as electronics, ceramics, and glass. Stainless steel screen has become the first choice for high-end printing due to its excellent durability and stability.
| Industry | Typical products | Recommended mesh | Technical points |

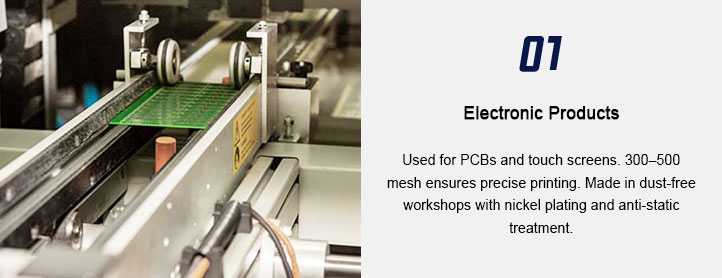

| Electronic products | PCB, touch screen | 300-500mesh | Dust-free workshop + nickel plating anti-static treatment |
| Ceramic decoration | Ceramic tiles, glazes | 200-400mesh | Special screen for high temperature resistant glazes |
| Glass printing | Automotive glass, bottle body | 150-250mesh | High tension + twill weave to prevent cracking |

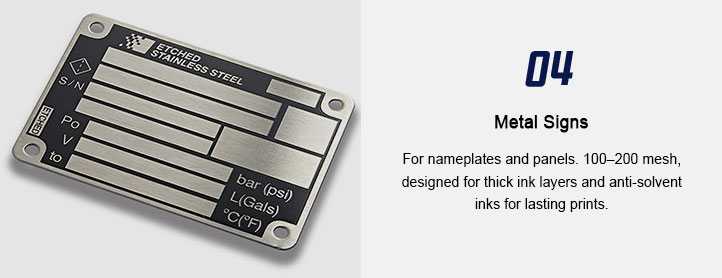

| Metal signs | Nameplates, panels | 100-200 mesh | Thick ink layer design + anti-solvent ink |
● Cleaning: Use special cleaning agent to remove ink residue immediately after printing.
● Storage: Protect from light and moisture, lay flat or hang vertically to avoid deformation.
● Tension detection: Calibrate with a tension meter regularly to maintain uniform tension.
● Avoid mechanical damage: The scraper pressure is moderate to prevent scratches on the mesh surface.
