Material: 201 stainless steel wire mesh
Diameter: 0.016-5mm or customized
Size: 1-2800mesh or customized
Standard: AISI, ASTM, JIS, DIN, EN, BS
Lead Time: Stock or 3--10 days or according to quantity

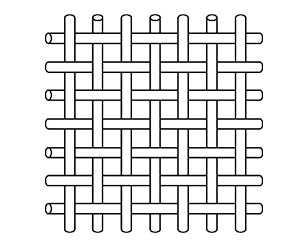

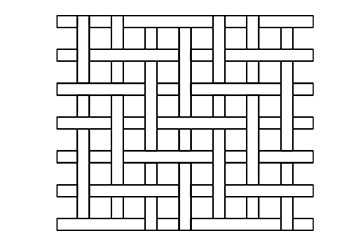

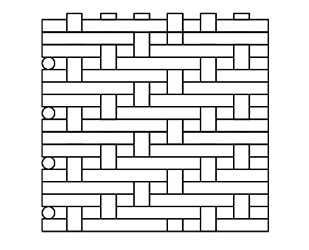

Weaving method: Plain Weave, Twill Weave, Plain Dutch Weave, Twill Dutch Weave, 5 Heddle Weave, Reverse Plain Dutch Weave, Reverse Twill Dutch Weave, Crimped.
Our Advantage:
Free Test Samples
Quick Response Within 12 Hours
Quality Guaranteed By SGS
Comply With European and American Standards
Directly Supplied By Our Factory
Products Description

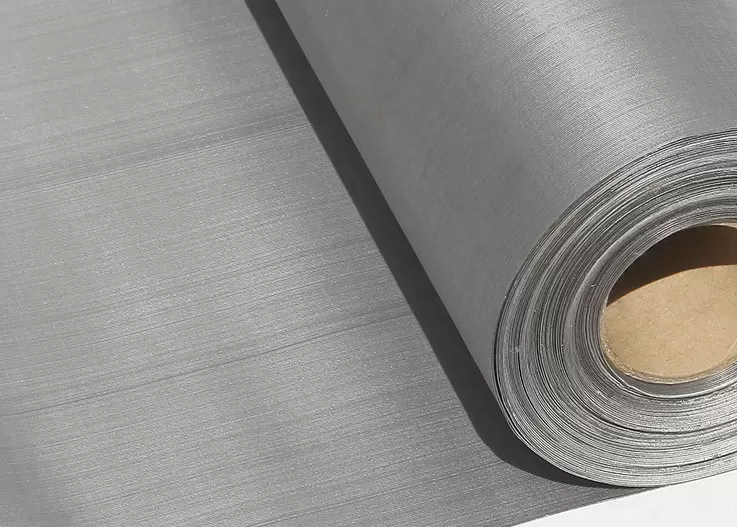

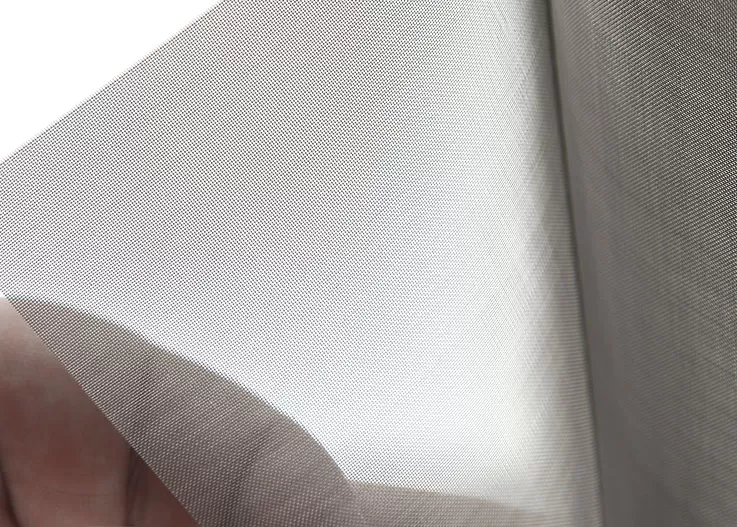

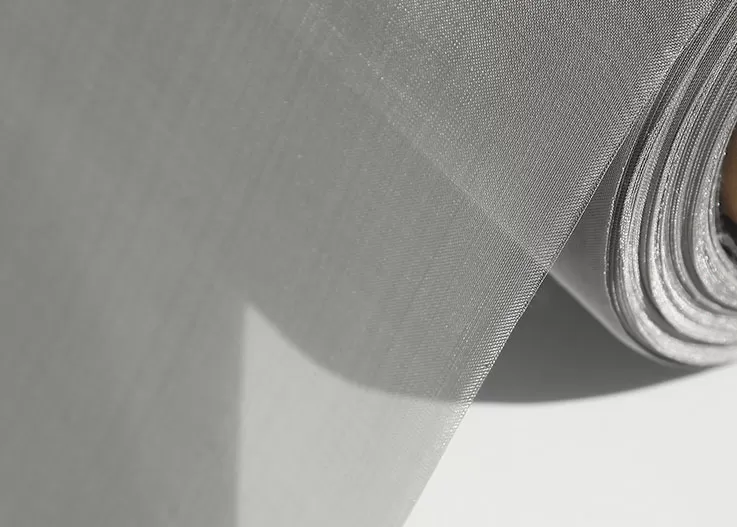

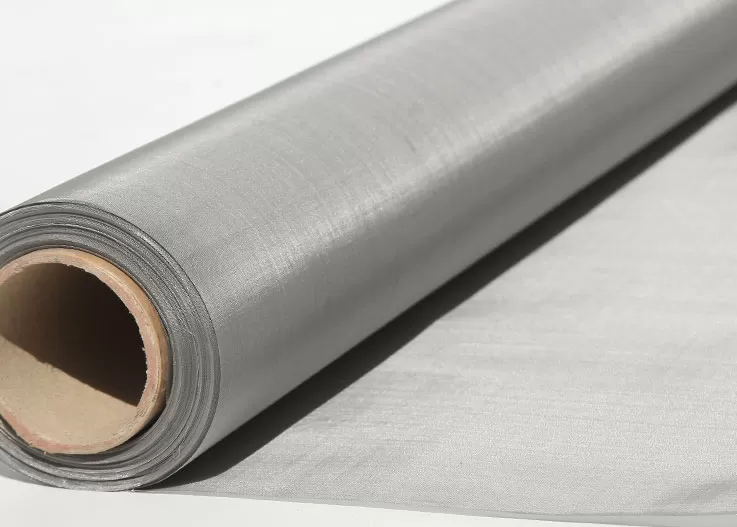

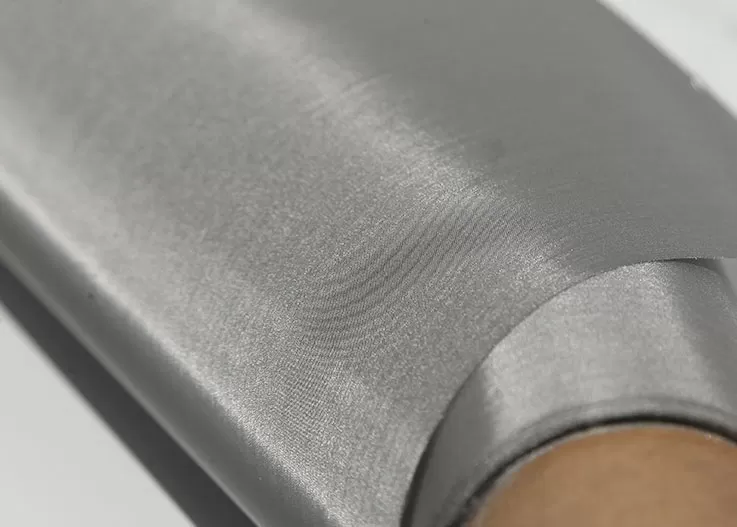

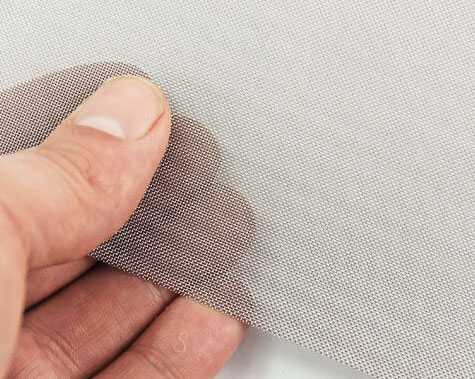

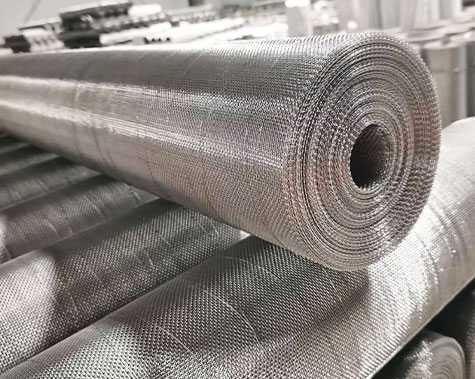

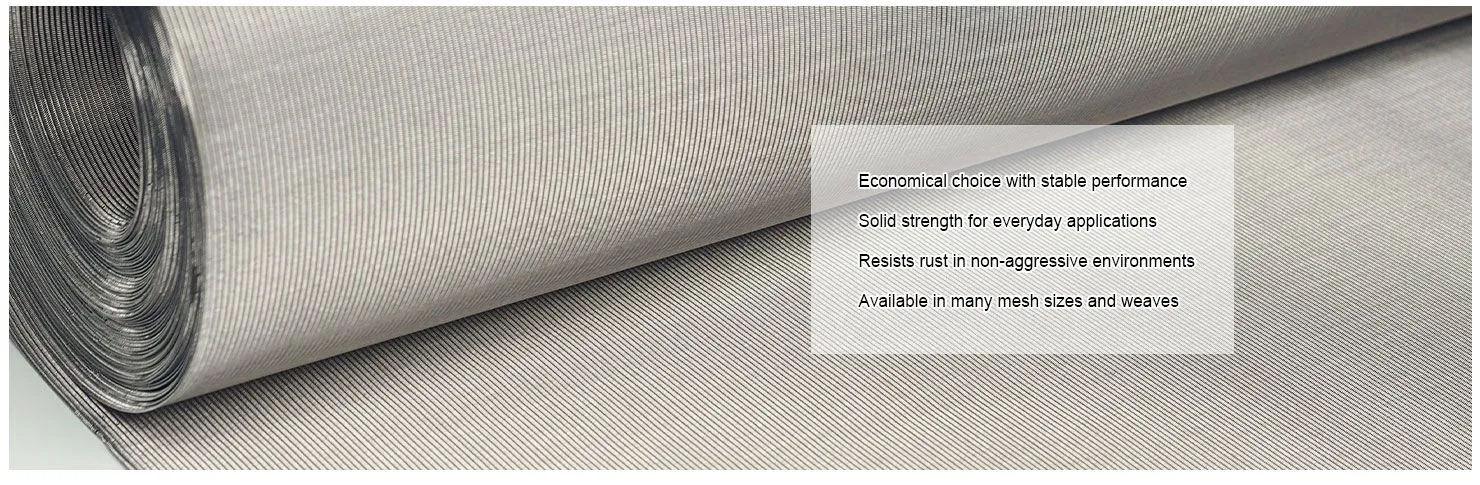

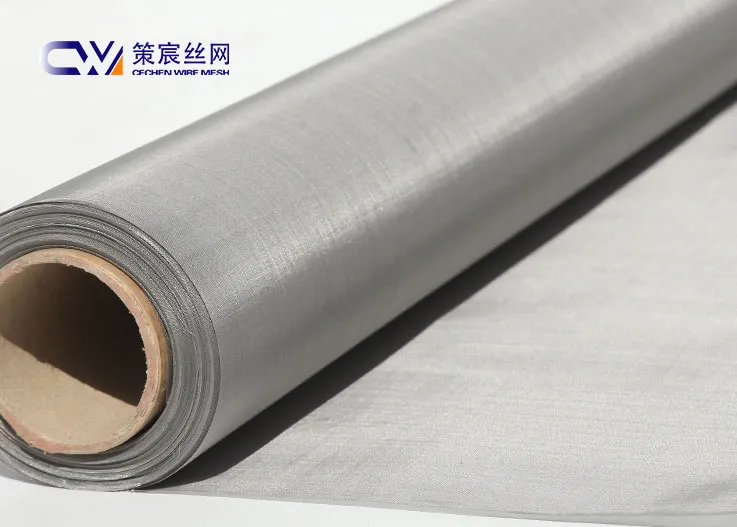

201 Stainless Steel Wire Mesh is a type of wire mesh made from 201 stainless steel wire, which has a higher manganese content and lower nickel content than other stainless steel wire meshes such as 304. 201 stainless steel wire mesh is a versatile and cost-effective material with a wide range of applications across industries like construction, filtration, agriculture, and design. While it doesn't offer the same level of corrosion resistance as 304 or 316 stainless steel wire mesh, it is a suitable choice for many applications where moderate corrosion resistance and strength are required, and where cost is a significant consideration.
| Steel Grade | C | Si | Mn | P | S | Cr | Mo | Ni |
| 201 | ≤0.15 | ≤1.00 | 5.5-7.5 | ≤0.06 | ≤0.03 | 16~18 | - | 3.5~5.5 |
Features

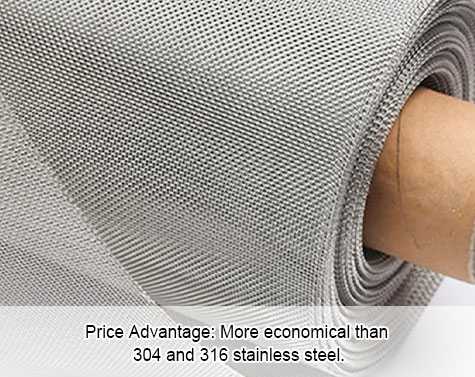

● Price advantage: Compared with 304 and 316 stainless steel, 201 material is more economical and affordable.

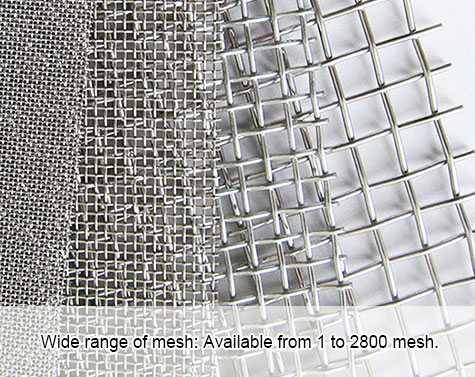

● Wide range of mesh: can be made from 1 mesh to 2800 mesh or higher to meet different needs.
● Various weaving methods: such as plain weave, twill weave and Dutch weave.

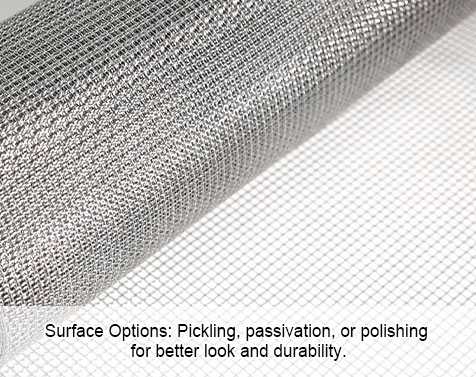

● Surface treatment: can be pickled, passivated or polished to increase aesthetics and durability.
Applications

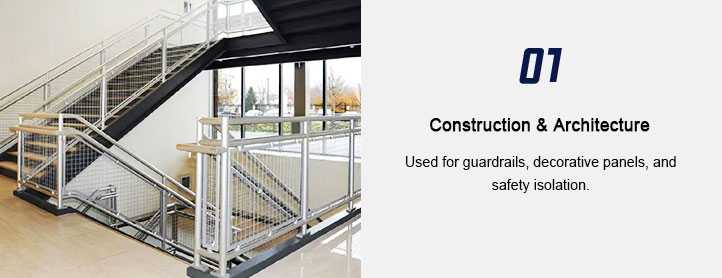

● Construction industry: used for guardrails, decorative nets and isolation nets.
● Mining and screening: used for screening, filtration and mineral processing.

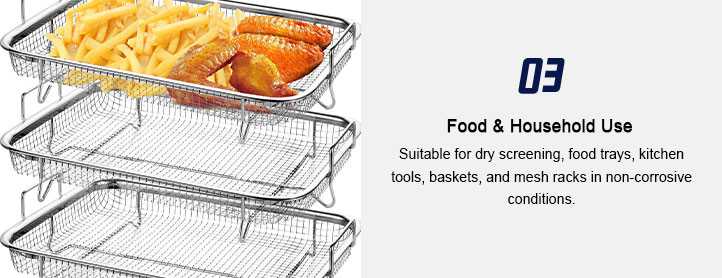

● Food processing: suitable for use such as dry screening and food trays (non-corrosive environment).
● Household items: commonly seen in kitchen utensils, baskets, mesh racks and other fields.
● General industry: used for general filtration and protection.
