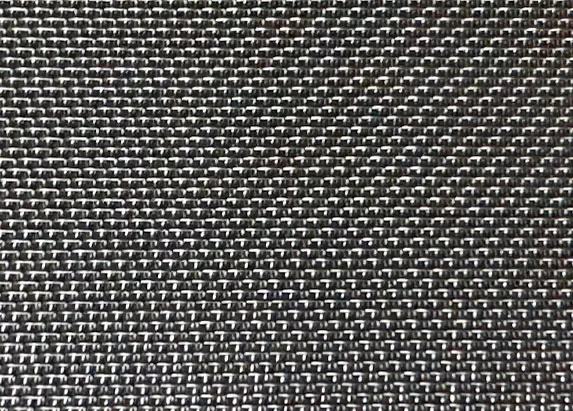

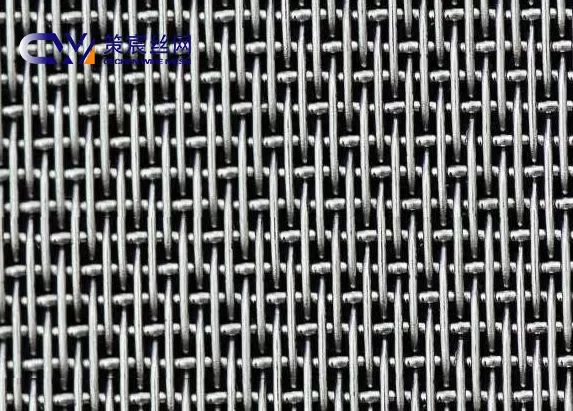

Stainless Steel Five Heddle Mesh

The weaving process of the five heddle mesh adopts a special interweaving method, where each warp wire is interwoven with five weft wires to form a mesh. Unlike traditional plain or twill weaves, the five heddle mesh has multiple weft wires interlaced at each interweaving point, which increases the strength and durability of the mesh surface.

Five Heddles In weaving, a heddle is a tool that holds and controls the warp threads, allowing the weaver to create a pattern or structure in the fabric. A five-heddle loom would be capable of producing more complex woven patterns than a loom with fewer heddles, providing greater versatility in the design of the mesh.

The special weaving craft of Five-Heddle Wire Mesh makes it possible to produce the mesh with high flow rates combined with strong mechanical stability. Five-Heddle wire mesh have proven especially applicable in drum filter equipment and in disc filters where the build up of the filter cake, the removal and the cleaning are performed in continuous cycles.

Stainless Steel Five Heddle Weave Mesh Features

Uniform Mesh

● Due to the Five Heddle weaving method, the mesh pores are more uniform, which is very important for applications that require precise separation, filtration or screening.

Improved strength

● The tight structure of the Five Heddle weaving makes the mesh surface have higher tensile strength, especially suitable for high-strength and heavy-load applications.

Good corrosion resistance

● Using high-quality stainless steel wire, the Five Heddle woven mesh has good corrosion resistance and is especially suitable for use in corrosive environments, such as chemical and marine industries.

High air permeability and filterability

● Due to the uniform and tight mesh, the Five Heddle woven mesh performs well in filtration, isolation, drainage, etc., and is often used in places that require high-precision filtration.

Aesthetics

● The mesh design of the Five Heddle woven mesh is both practical and has a certain decorative effect. It is often used in architectural decoration, curtain walls and other fields.

Stainless Steel Five Heddle Weave Mesh Applications

Five heddle weave offers high flow rates and is suitable for high mechanical loads, featuring a lightly structured mesh surface. Five-heddle woven meshes are popular in applications including pressure and vacuum filters as well as filter candles. It can also be used as filler and as part of mold material, especially in applications requiring high strength and corrosion resistance.Below are some detailed applications of stainless steel five heddle wire mesh.

As a filler

In some industrial applications, the five heddle mesh can be used as a filler, especially in the following scenarios

● Reactor filler

During chemical reactions, especially in gas-liquid contact reactors or catalyst beds, the five heddle mesh can be used as an auxiliary material for fillers to provide support, increase the surface area of the reactor and gas fluidity. Its high strength and corrosion resistance allow it to work stably for a long time in harsh environments.

● Gas distributor

In some gas distribution devices, the structure of the five heddle mesh can be used to evenly distribute the gas flow, especially in gas filters or distribution devices, to help optimize the distribution effect of the gas flow.

As mold material

The application of stainless steel Five Heddle mesh as mold material is relatively rare, but in some special fields, Five Heddlemesh can also be used as a mold reinforcement material or mold structure support material, such as:

● Casting mold support

In some metal casting or plastic injection molds, Five Heddle mesh can be used as a mold support structure to provide stronger mechanical strength and high temperature resistance. Its mesh structure can help improve the stability and durability of the mold.

● Heat exchange and mold cooling system

Five Heddle mesh can also be used as the core part of the mold cooling system to optimize heat exchange, especially in molds that require rapid heat dissipation. The mesh structure can help accelerate the flow of coolant and improve cooling efficiency.

Filtration

● Chemical Processing: In chemical industries, where precise filtration is required, 5-heddle weave mesh offers uniform openings and fine filtration properties. It’s ideal for filtering liquids, gases, and solid particles.

● Oil & Gas: Used in filtration systems for oil, natural gas, and water treatment plants, where high strength and corrosion resistance are critical.

● Filter candles: five heddle weave mesh is essential components in liquid and gas filtration systems, especially in industries such as chemical processing, food and beverage, pharmaceuticals, and petrochemicals.

● Due to its precise, uniform structure, five heddle weave mesh is often employed in parts that require intricate mesh for thermal management or filtration purposes.

Used in the construction of components like filters, screens, and protective barriers.

Filtration and sieving

● Stainless steel five heddle mesh can be used in screening and sorting materials like coal, gravel, sand, and ores due to its high-strength design. The weave ensures that particles stay separated according to their size.

● Used for sifting and separating grains, nuts, and other food products. The uniformity and strength of the mesh are beneficial in ensuring no contamination or loss of material.

Architecture & Construction

● Facade cladding: For aesthetic and functional purposes, 5-heddle weave mesh can be used in the facades of buildings for decorative features that also provide sun shading or ventilation.

● Security Fencing: The weave structure provides extra strength, making it ideal for use in security fencing or barriers for high-security areas.
