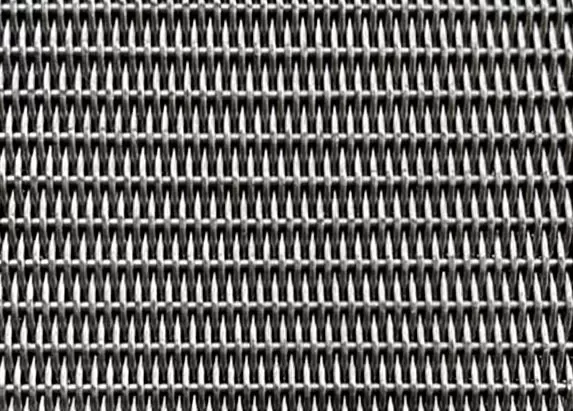

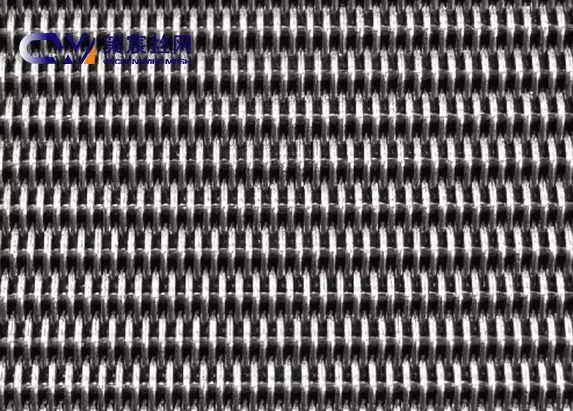

Stainless steel dutch woven mesh is a type of wire mesh that is commonly used for filtration, separation, and protective purposes. Different from plain weave woven wire mesh and twill woven wire mesh, the dutch weave woven wire mesh has different diameter in the weft and warp directions. Commonly the warp wire is coarser wire, which can supply the high tensile strength for the wire mesh. The weft wire is finer wire, which can ensure the excellent filtering performance. This unique structure with greater strength and finer openings is primarily used as a filter cloth.

Stainless Steel Dutch Woven Mesh Detailed Specifications

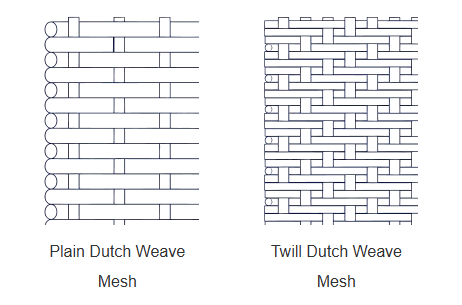

Type of Dutch Weave Woven Wire Mesh: Plain Dutch Weave, Twill Dutch Weave

The difference between Plain Dutch and Twill Dutch woven wire mesh lies mainly in the way the wires are woven, which affects the mesh's appearance and its characteristics, such as strength, filtration capacity, and durability.

Plain Dutch Wire Mesh

● Weaving Pattern: In Plain Dutch, the weave consists of thicker warp wires and thinner weft wires. The warp wires pass over and under the weft wires in a simple alternating pattern.

● Appearance: The openings tend to have a more consistent, square shape.

● Strength: Because the warp wires are thicker, the mesh is strong and resistant to deformation. It’s also used for filtering applications where strength and durability are needed.

● Applications: Often used in heavy-duty filtration, industrial sieves, and as a barrier in mechanical systems.

Twill Dutch Woven Wire Mesh

● Weaving Pattern: In Twill Dutch, both the warp and the weft wires are woven in a twilled pattern. This means that the wires are woven in a way where each wire passes over two or more wires before passing under, which creates a diagonal weave pattern. The warp wires are still thicker, but the weft wires are also thicker and woven in a twill manner.

● Appearance: The openings in Twill Dutch mesh are often more elongated and have a more textured, diagonal appearance due to the twill weave.

● Strength: This weave pattern increases the mesh’s strength while also providing better filtration performance, especially for finer particles.

● Applications: Commonly used in fine filtration, petrochemical, and pharmaceutical applications where high strength and precision filtering are required.

Advantages and Application of Stainless Steel Dutch Mesh

Corrosion Resistance

● Superior resistance to corrosion: Stainless steel naturally resists rust, staining, and corrosion, making it ideal for use in harsh environments such as chemical plants, marine applications, and outdoor settings. It’s especially valuable in applications where exposure to moisture, oils, acids, or salts is frequent.

Durability & Strength

● High tensile strength: The mesh structure, especially in Dutch weave, ensures that the material is both strong and durable. It can withstand high-pressure conditions and mechanical stresses, making it suitable for use in demanding environments.

● Long-lasting performance: The combination of strength and corrosion resistance results in a mesh that lasts much longer than alternative materials, reducing the need for frequent replacements,which makes it less expensive to maintain.

Fine Filtration

● Precision filtration: Dutch woven mesh, especially in its Twill version, offers a precise and uniform weave that allows for fine filtration. It can efficiently separate fine particles from liquids and gases, making it ideal for applications like water treatment, pharmaceuticals, and food production.

Temperature Resistance

● Heat resistance: Stainless steel can withstand high temperatures, which makes it suitable for use in industries where temperatures may rise significantly (e.g., automotive, aerospace, chemical processes). It doesn’t degrade under heat like other metals might.

Easy to Clean & Sterilize

● Hygienic and low-maintenance: Stainless steel mesh can be easily cleaned and sterilized, which is critical in environments like food processing, pharmaceuticals, and laboratories where cleanliness is paramount.

● Smooth surface: The smooth surface reduces the buildup of dirt or bacteria, further contributing to its suitability for sanitary applications.

Customizable and Versatile

● Variety of mesh sizes: Stainless steel Dutch woven mesh comes in various mesh sizes and wire thicknesses, allowing for customization based on specific filtration needs, whether it’s coarse or fine filtration.

Sustainability

● Recyclable: Stainless steel is 100% recyclable, which makes it an environmentally-friendly choice. The material can be reused and repurposed without losing its inherent qualities, contributing to sustainable practices in various industries.

Stainless Steel Dutch Wire Mesh FAQ

What are the advantages of stainless steel dutch weave mesh over plain weave mesh?

● Stainless steel dutch weave mesh has Greater mechanical stability, Finer opening for better filtration efficiency and quality and Coarser wire for higher tensile strength.

Why choose Ce Chen?

● Cechen manufactures have nearly 40 years of experience in producing woven stainless steel wire mesh and nearly 10 years of export experience. Our products are exported to more than 30 countries and regions. and we have many long-term and stable partners. We obtained ISO9001 quality system certification in 2016. We have over 100 machines; Our independently developed wireless downlink equipment upgrade meets the customer's product requirements for meters. At the same time, the advanced card weft technology ensures the uniformity of the aperture and the consistency of the mesh structure.

Is there any after-sales service for the product?

● We have our own factory and strict production and quality inspection processes, which can provide customers with the highest quality products. At the same time, we have complete after-sales service. If you have any questions about the products you received, you can contact us and we will definitely give you a satisfactory answer.

How long is the delivery time of the product?

● We have a large inventory, and the general delivery time is 3-10 days. If you need customized products, the delivery time may be extended according to the quantity and specifications of the products you order.
