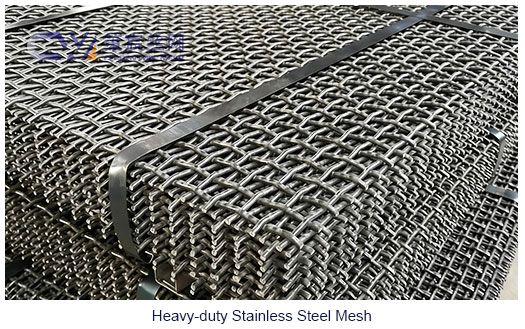

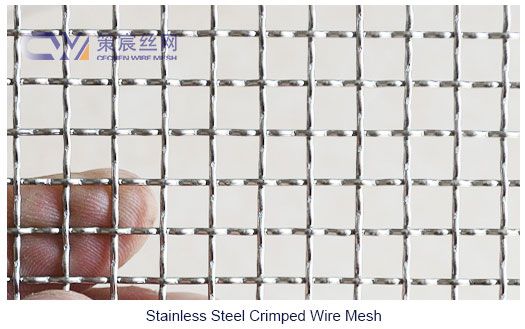

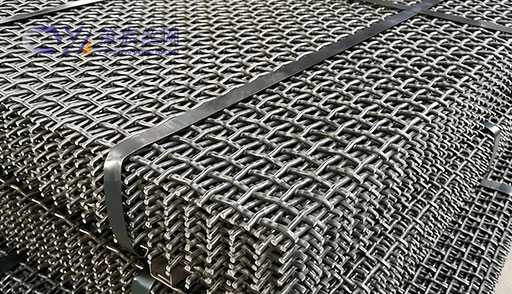

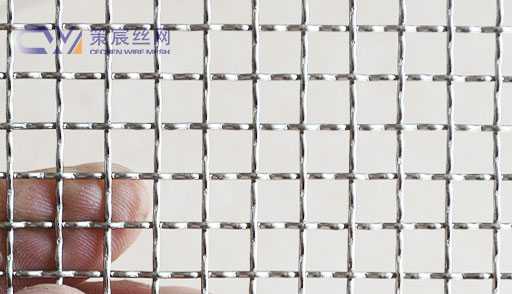

Stainless Steel Crimped Wire Mesh

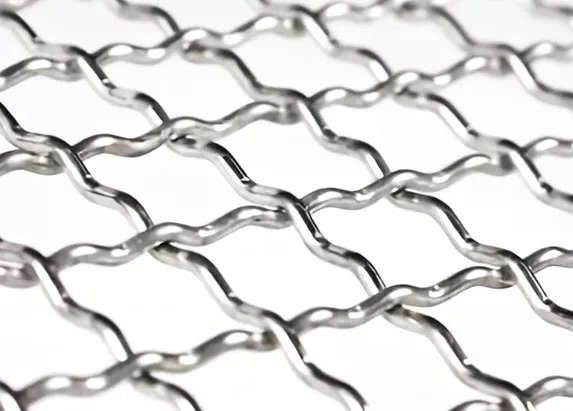

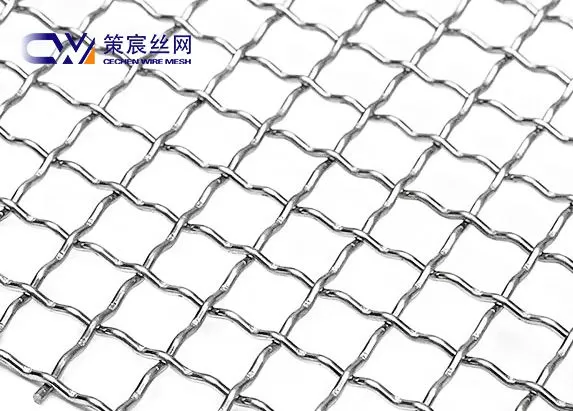

Stainless Steel Crimped Weave Mesh is a type of wire mesh made from stainless steel wires that are crimped to create a woven pattern. The pre-crimped wire enables the net to be locked together to form a tight braided structure with good rigidity, solid structure, stable performance, smooth mesh surface and uniform aperture.
The material can made from Carbon iron, galvanized steel, high high-strength steel. Stainless steel sus 304 316 316L 321 310S 904L and duplex stainless steel series. Special materials such as copper, nickel-based alloys (lnconel.monel) can be customized.
Stainless Steel Crimped Weave Mesh is widely used in various applications due to its strength, corrosion resistance, and durability,It is widely used in construction, chemical industry, mining, medicine, energy, metallurgy and other industries.
| MESH | WIRE DIAMETER | APERTURE/OPENING | %OPEN AREA | ||
| (INCH) | (MM) | (INCH) | (MM) | ||
| 1×1 | 0.080 | 2.03 | 0.920 | 22.37 | 84.6 |
| 2×2 | 0.063 | 1.60 | 0.437 | 11.10 | 76.4 |
| 3×3 | 0.054 | 1.37 | 0.279 | 7.09 | 70.1 |
| 4×4 | 0.063 | 1.60 | 0.187 | 4.75 | 56.0 |
| 4×4 | 0.047 | 1.19 | 0.203 | 5.16 | 65.9 |
| 5×5 | 0.041 | 1.04 | 0.159 | 4.04 | 63.2 |
| 6×6 | 0.035 | 0.89 | 0.132 | 3.35 | 62.7 |
| 8×8 | 0.028 | 0.71 | 0.097 | 2.46 | 60.2 |
| 10×10 | 0.025 | 0.64 | 0.075 | 1.91 | 56.3 |
| 10×10 | 0.020 | 0.51 | 0.080 | 2.03 | 64.0 |
| 12×12 | 0.023 | 0.584 | 0.060 | 1.52 | 51.8 |
| 12×12 | 0.020 | 0.508 | 0.063 | 1.60 | 57.2 |
Cechen stainless steel crimped weave mesh can be customized according to customer needs, such as you have special mesh count or width, length requirements we can adjust the looms to weave.
● Corrosion Resistance: Stainless steel is naturally resistant to oxidation and rust, making it ideal for outdoor and marine environments.
● Strength: The wires are crimped (or bent) before being woven together, which provides added strength and stability to the mesh.
● Aesthetic Appeal: Stainless steel mesh has a sleek, modern look that is often used for architectural purposes.
● Mesh Design: The mesh can have different designs, such as square, rectangular, or other custom patterns depending on the intended use.
● Durability: Stainless steel provides high tensile strength, making the mesh durable in harsh environments.
Production Process of Stainless Steel Crimped Wire Mesh
Raw Material Preparation
● Selection of Stainless Steel Wire: Stainless steel wires of different diameters and materials are selected based on requirements.
● Material Inspection: Ensure the stainless steel wire meets standards and is free from defects.
Crimping Process
● Crimping Machine: The stainless steel wire is passed through a crimping machine to press it into a wavy or other shape, enhancing strength and elasticity.
● Parameter Adjustment: Adjust the pressure, speed, and pattern of the crimping machine according to product requirements.

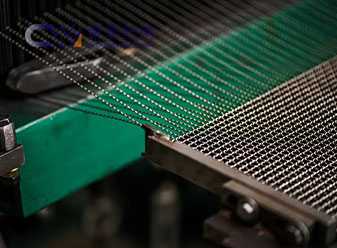

Weaving
● Weaving Machine: The crimped stainless steel wire is fed into a weaving machine and woven in plain, twill, or patterned styles.
● Mesh Control: Control the size and shape of the mesh by adjusting the parameters of the weaving machine.
Welding (if required)
● Spot Welding: Perform spot welding on parts that need fixed connections to ensure structural stability.
● Full Welding: Apply full welding to products requiring high strength.
Cutting
● Cutting: Cut the woven crimped wire mesh to the required dimensions based on customer needs.
● Edge Trimming: Process the edges to prevent burrs and sharp corners.
Surface Treatment
● Polishing: Removes surface impurities and enhances gloss.
● Electroplating: Enhances corrosion resistance and decorative appearance.
● Spraying: Provides different colors to the stainless steel expanded mesh.
Inspection

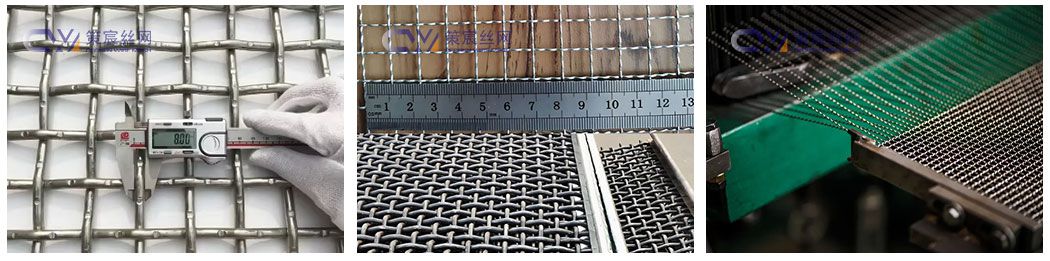

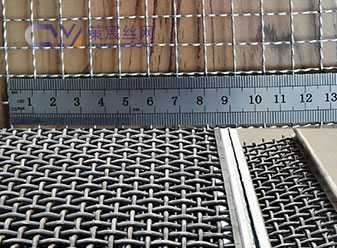

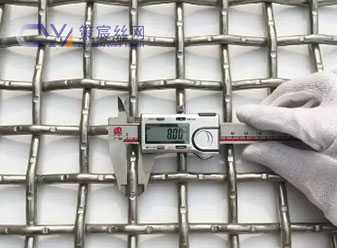

● Quality Inspection: Check mesh size, wire diameter, surface treatment, etc., to ensure compliance with standards.
● Strength Testing: Conduct tensile and compression tests to ensure product strength meets requirements.
● Filtration: Crimped stainless steel mesh is commonly used in filtration systems, especially where high strength and corrosion resistance are required (e.g., oil filtration, water treatment, and air filtration).

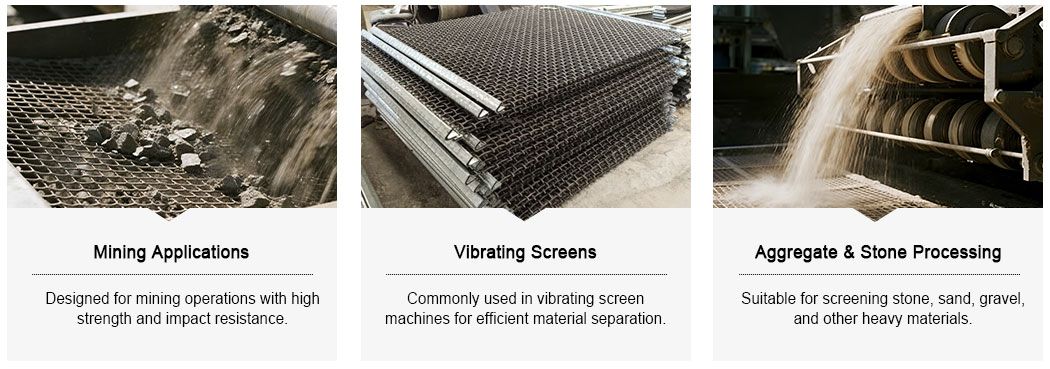

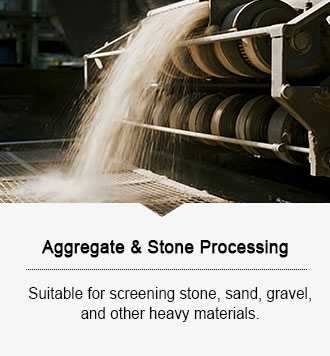

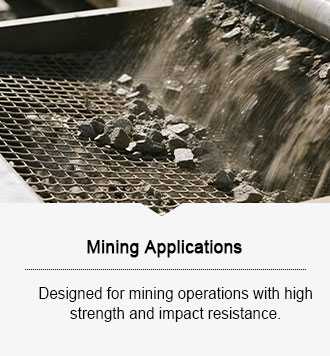

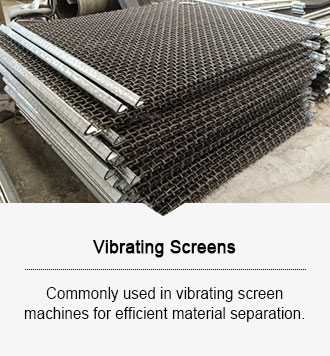

● Industrial Use: It's used in various industries for screening, sifting, and sorting materials like sand, gravel, and other aggregates.

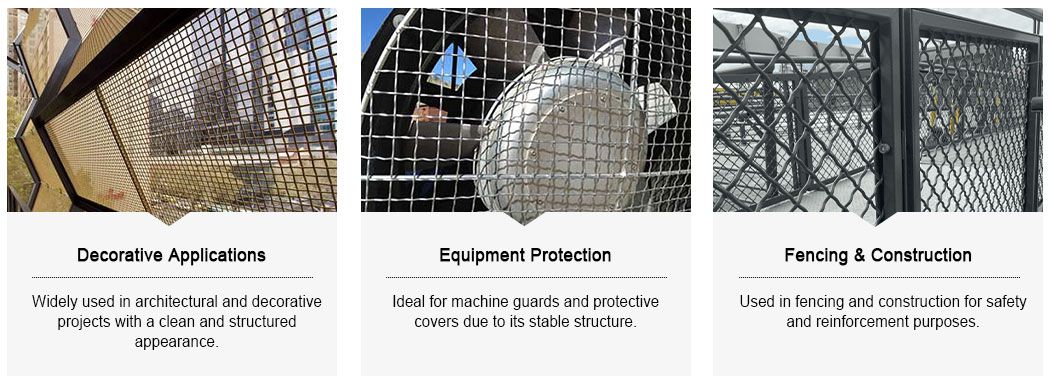

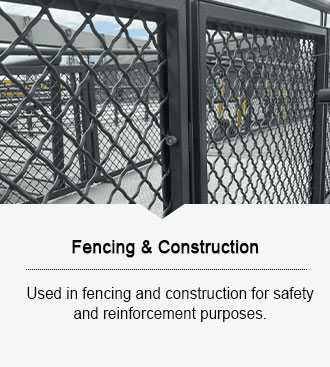

● Security Fencing: Its durability and strength make it suitable for security applications such as fences, barriers, and gates.

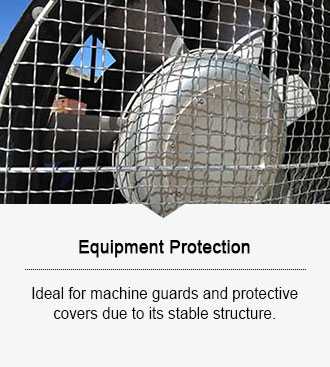

● Separation and Protection: Often used for protecting sensitive equipment or machinery from dust or debris and separating materials in industrial environments.

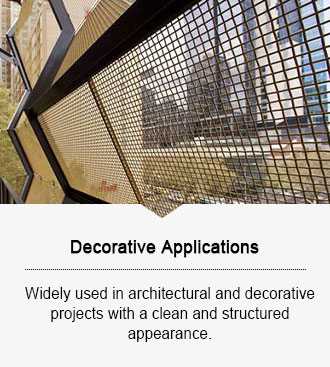

● Architectural Uses: Crimped stainless steel mesh can also be used for decorative and functional architectural applications, such as building facades and interior design elements
Cechen Stainless Steel Crimped Wire Mesh Manufacturer focuses on the research and development, production and sales of stainless steel crimped wire mesh. With advanced production technology, strict quality control and rich industry experience, we have become a world-renowned stainless steel crimped wire mesh supplier.
● High-quality stainless steel materials
We select high-quality 304, 316, and 316L stainless steel to ensure that the products have excellent properties such as corrosion resistance, oxidation resistance, and high strength, and are suitable for various complex environments.
● Precision crimping process
Advanced crimping equipment is used to ensure uniform mesh, stable structure, wear resistance and durability, meeting the strict requirements of different industries.
● Rich specifications and support customization
Provide a variety of specifications with different wire diameters, meshes, and weaving methods, suitable for screening, filtration, protection, decoration and other fields, and can be customized according to customer needs.
● Widely used, covering multiple industries
Our stainless steel crimped wire mesh is widely used in mining, petroleum, chemical, construction, agriculture, food processing and other industries, helping customers improve production efficiency and safety.
● Global supply, stable delivery
As an industry-leading manufacturer, we have sufficient inventory, strict quality control and efficient logistics system to ensure fast delivery and long-term stable supply to customers around the world.
