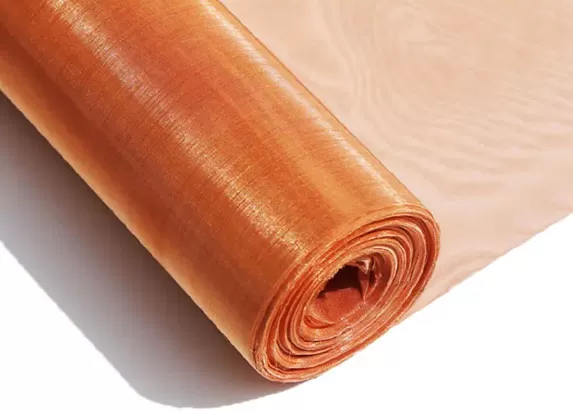

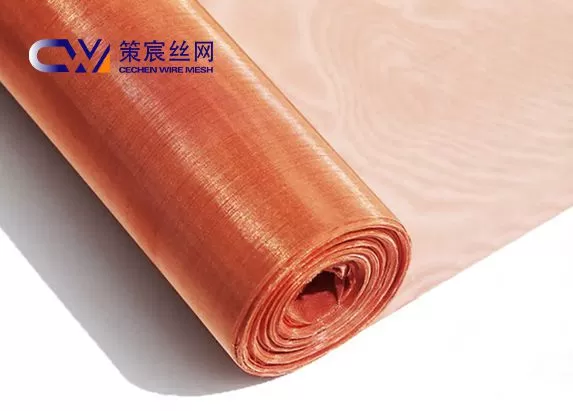

Red Copper Wire Mesh
Material: Copper Wire (pure copper proportion 99.9%)
Woven style: Plain Weave, Twill Weave, Dutch Weave.
Mesh: 2-200mesh
Diameter: 0.05-1.8mm
Roll Width: 0.5-3m or customized
Roll Length: 30m or customized

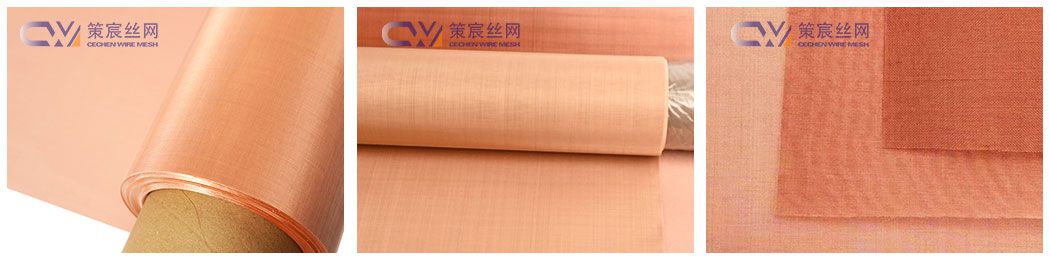

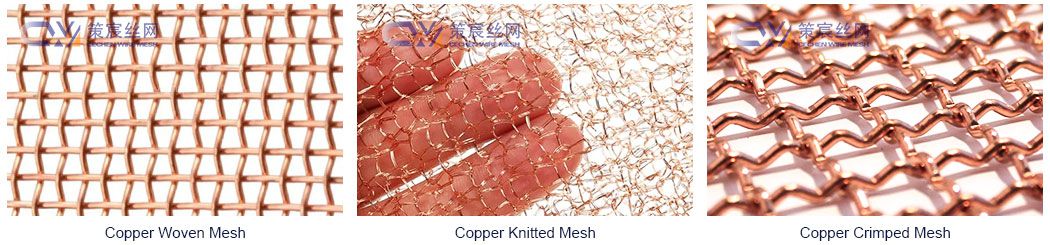

Red Copper Wire Mesh is woven with Pure copper wire 99.9%, Annealing to make the wire more flexible, Class A process.
Red copper mesh is a mesh material made of copper (i.e. high-purity copper). Red copper has excellent electrical conductivity, thermal conductivity and corrosion resistance. Compared with ordinary copper mesh, Red copper usually has higher purity and better processing performance, so it is widely used in high-demand applications. Whether you want standard rolls or sheet or cut pieces or a custom wire mesh, we will be happy to deliver the best copper mesh for your needs
| Mesh | Wire diameter | Opening (mm) | ||
| SWG | mm | Inch | ||
| 2 | 15 | 1.8 | 0.071 | 10.9 |
| 3 | 16 | 1.6 | 0.063 | 6.866 |
| 4 | 22 | 0.711 | 0.028 | 5.64 |
| 5 | 20 | 0.91 | 0.036 | 4.17 |
| 6 | 22 | 0.711 | 0.028 | 3.522 |
| 8 | 26 | 0.457 | 0.018 | 2.7 |
| 10 | 27 | 0.417 | 0.016 | 2.1 |
| 12 | 26 | 0.457 | 0.018 | 1.66 |
| 14 | 27 | 0.417 | 0.016 | 1.397 |
| 16 | 29 | 0.345 | 0.013 | 1.243 |
| 18 | 26 | 0.457 | 0.018 | 0.98 |
| 20 | 30 | 0.315 | 0.012 | 0.955 |
| 22 | 32 | 0.274 | 0.009 | 0.88 |
| 24 | 30 | 0.315 | 0.012 | 0.743 |
| 26 | 31 | 0.295 | 0.01 | 0.682 |
| 28 | 31 | 0.295 | 0.01 | 0.612 |
| 30 | 32 | 0.274 | 0.009 | 0.573 |
| 32 | 33 | 0.254 | 0.008 | 0.54 |
| 34 | 34 | 0.234 | 0.007 | 0.513 |
| 36 | 34 | 0.234 | 0.007 | 0.472 |
| 38 | 35 | 0.213 | 0.005 | 0.455 |
| 40 | 36 | 0.193 | 0.008 | 0.442 |
| 42 | 36 | 0.193 | 0.0076 | 0.412 |
| 44 | 37 | 0.173 | 0.0068 | 0.404 |
| 46 | 37 | 0.173 | 0.0068 | 0.379 |
| 48 | 37 | 0.173 | 0.0068 | 0.356 |
| 50 | 37 | 0.173 | 0.0068 | 0.335 |
| 60 × 50 | 36 | 0.193 | 0.0076 | - |
| 60 × 50 | 37 | 0.173 | 0.0068 | |
| 60 | 42 | 0.1 | 0.004 | 0.32 |
| 70 | 41 | 0.112 | 0.0044 | 0.251 |
| 80 | 40 | 0.122 | 0.0048 | 0.196 |
| 90 | 41 | 0.112 | 0.0044 | 0.17 |
| 100 | 42 | 0.102 | 0.004 | 0.152 |
| 120 × 108 | 43 | 0.091 | 0.0036 | - |
| 120 | 45 | 0.071 | 0.0028 | 0.14 |
| 140 | 46 | 0.061 | 0.0024 | 0.12 |
| 145 | 46 | 0.061 | 0.0024 | 0.1168 |
| 150 | 46 | 0.061 | 0.0024 | 0.108 |
| 160 | 46 | 0.061 | 0.0024 | 0.098 |
| 180 | 47 | 0.051 | 0.002 | 0.09 |
| 200 | 47 | 0.051 | 0.002 | 0.076 |
| Mesh size and wire diameter can be customized | ||||

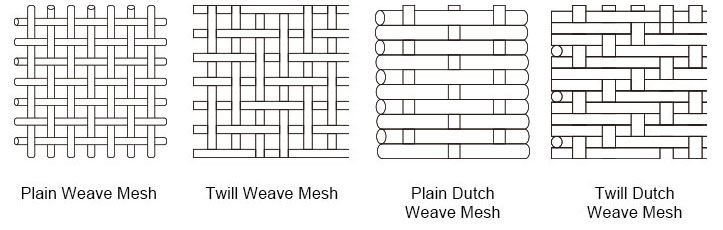

Plain weave: This is the most common weave and is suitable for general screening and filtration applications.
Twill weave: Suitable for occasions where higher strength and air permeability are required, usually stronger than plain weave.
Dutch weave: This weave is suitable for precision filtration and high-strength applications.
● Natural copper surface: No special treatment is performed, maintaining the natural appearance and characteristics of copper, suitable for most environments.
● Tin plating: In order to improve corrosion resistance, the surface of copper mesh can be tinned to enhance oxidation resistance.
● Coating treatment: Sometimes a protective coating is applied to improve the corrosion resistance and aesthetics of copper mesh.
● Copper (pure copper): It contains 99.9% copper, is purple-red in color, and has good electrical and thermal conductivity.
● Electrical conductivity: Copper's electrical conductivity is second only to silver, making it an ideal material for the electrical industry.
● Thermal conductivity: It has excellent thermal conductivity and is often used in heat dissipation equipment.
● Corrosion resistance: It has good corrosion resistance in a dry environment, but is easily oxidized to form patina in a humid environment.
● Plasticity: It has good ductility and is easy to be processed into various shapes.

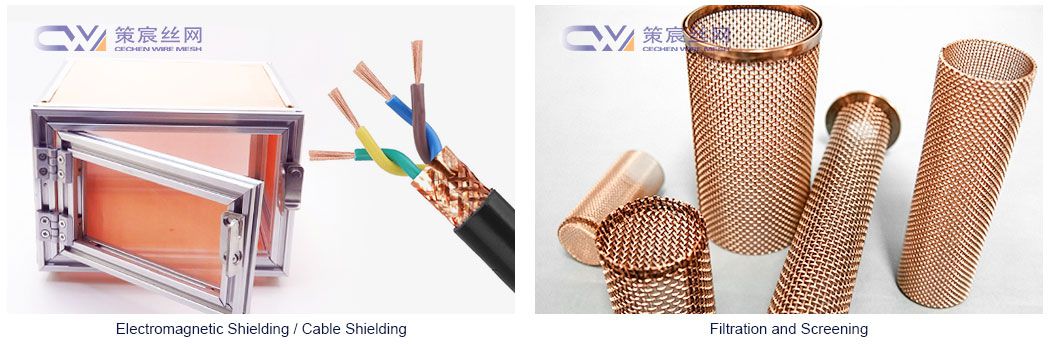

Electrical and Electronic Industry
● Due to the good conductivity of copper, copper mesh is widely used in grounding systems, cable shielding, electromagnetic shielding and other occasions in electrical equipment.
Filtration and Screening
● Copper mesh is often used in air filtration, water treatment, chemical filtration and other fields, especially for the filtration and screening of fine particles.

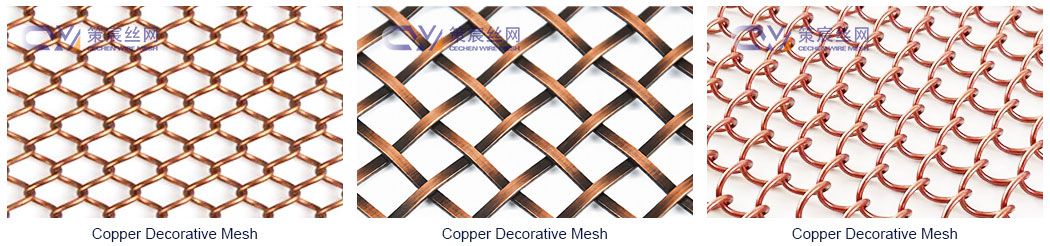

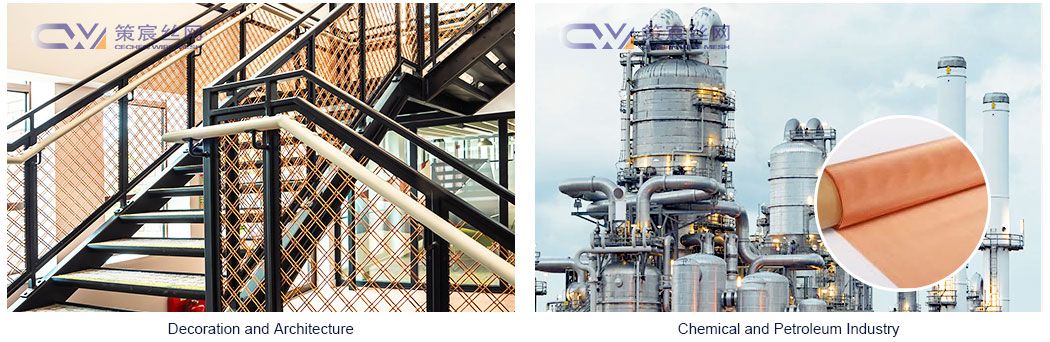

Decoration and Architecture
● Due to the unique appearance of copper, copper mesh is also widely used in architectural decoration, interior decoration, facade grid and other places. It has both beautiful effects and can be used as a practical sunshade or isolation net.
Protection and Safety
● Copper mesh is also commonly used in safety protection nets, fire protection nets, electromagnetic protection nets and other fields to provide effective physical barriers or electromagnetic shielding.
Chemical and Petroleum Industry
● In some special chemical reactions and high temperature environments, copper mesh can also play its corrosion resistance advantages to protect equipment from damage.
Cechen can produce all kinds of red copper wire, red copper mesh, red copper braided mesh according to your requirements. We have professional equipment such as cutting machines, wire drawing machines, braiding machines, welding equipment, etc., which can efficiently and accurately produce copper wire, copper mesh and copper braided mesh of various sizes and specifications to ensure the high quality and high precision of each product. At the same time, we can customize different wire diameters, apertures, sizes and mesh wire mesh according to your specific requirements. Whether you need red copper wire mesh for filtering, screening, electromagnetic shielding, or for decoration and other different purposes, we can provide you with tailor-made solutions.
