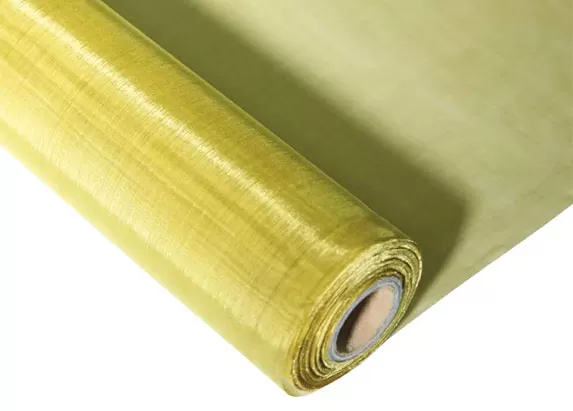

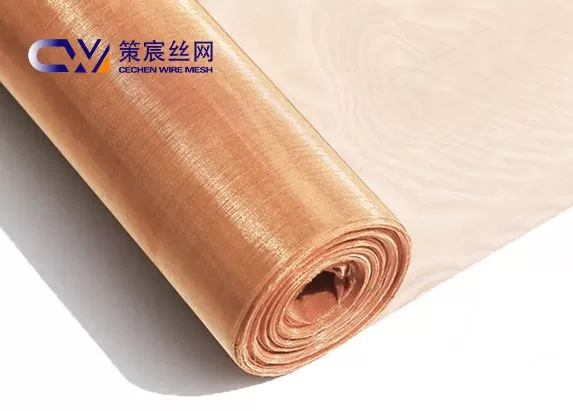

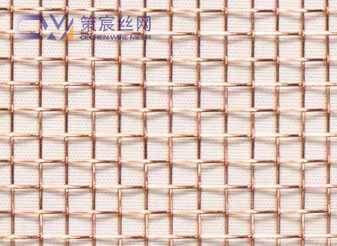

Phosphor Bronze Wire Mesh
Phosphor Bronze Mesh is a mesh material woven from phosphor bronze. Phosphor bronze is a copper alloy that contains a small amount of phosphorus.
Material: Phosphor bronze wire

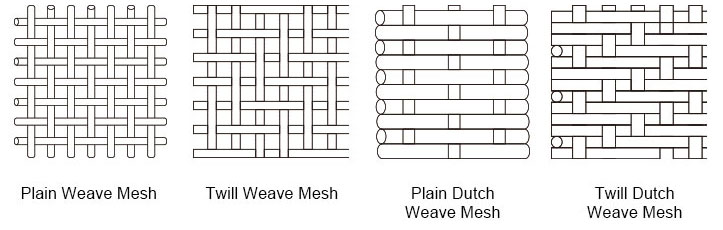

Woven Style: Plain Weave, Twill Weave or Dutch Weave.
Mesh: 6-250mesh
Diameter: 0.04-0.7mm
Roll Width: 0.5-1.5m
Roll Length: 10-100m
Phosphor Bronze Mesh is a mesh material woven from phosphor bronze. Phosphor bronze is a copper alloy that contains a small amount of phosphorus (usually 0.02%-0.35%). By adding phosphorus, phosphor bronze has better performance in corrosion resistance, wear resistance, elasticity and strength, so it is often used to manufacture high-strength, wear-resistant and corrosion-resistant materials.
Weaving Type
| Mesh | Wire Diameter | Opening (mm) | ||
| SWG | mm | inch | ||
| 10 | 25 | 0.508 | 0.02 | 2.032 |
| 12 | 26 | 0.457 | 0.018 | 1.66 |
| 14 | 27 | 0.417 | 0.016 | 1.397 |
| 16 | 29 | 0.345 | 0.014 | 1.243 |
| 18 | 30 | 0.315 | 0.012 | 1.096 |
| 20 | 30 | 0.315 | 0.0124 | 0.955 |
| 22 | 30 | 0.315 | 0.0124 | 0.84 |
| 24 | 30 | 0.315 | 0.0124 | 0.743 |
| 26 | 31 | 0.295 | 0.0116 | 0.682 |
| 28 | 31 | 0.295 | 0.0116 | 0.612 |
| 30 | 32 | 0.274 | 0.011 | 0.573 |
| 32 | 33 | 0.254 | 0.01 | 0.54 |
| 34 | 34 | 0.234 | 0.0092 | 0.513 |
| 36 | 34 | 0.234 | 0.0092 | 0.472 |
| 38 | 35 | 0.213 | 0.0084 | 0.455 |
| 40 | 36 | 0.193 | 0.0076 | 0.442 |
| 42 | 36 | 0.193 | 0.0076 | 0.412 |
| 44 | 37 | 0.173 | 0.0068 | 0.404 |
| 46 | 37 | 0.173 | 0.0068 | 0.379 |
| 48 | 37 | 0.173 | 0.0068 | 0.356 |
| 50 | 37 | 0.173 | 0.0068 | 0.335 |
| 60 × 50 | 36 | 0.193 | 0.0076 | - |
| 37 | 0.173 | 0.0068 | ||
| 60 | 37 | 0.173 | 0.0068 | 0.25 |
| 60 | 38 | 0.15 | 0.0059 | 0.27 |
| 70 | 30 | 0.132 | 0.0052 | 0.231 |
| 80 | 40 | 0.122 | 0.0048 | 0.196 |
| 90 | 41 | 0.112 | 0.0044 | 0.17 |
| 100 | 42 | 0.012 | 0.004 | 0.152 |
| 120 × 108 | 43 | 0.091 | 0.0036 | - |
| 120 | 44 | 0.081 | 0.0032 | 0.131 |
| 140 | 46 | 0.061 | 0.0024 | 0.12 |
| 150 | 46 | 0.061 | 0.0024 | 0.108 |
| 160 | 46 | 0.061 | 0.0024 | 1.098 |
| 180 | 47 | 0.051 | 0.002 | 0.09 |
| 200 | 47 | 0.051 | 0.002 | 0.076 |
| 220 | 48 | 0.051 | 0.002 | 0.065 |
| 250 | 48 | 0.041 | 0.0016 | 0.061 |
| 280 | 48 | 0.035 | 0.0014 | 0.056 |
| 300 | 49 | 0.031 | 0.0012 | 0.054 |
| 320 | 49 | 0.031 | 0.0012 | 0.046 |
| 330 | 49 | 0.031 | 0.0012 | 0.042 |
| 350 | 49 | 0.031 | 0.0012 | 0.039 |
| 360 | 49 | 0.025 | 0.00098 | 0.0385 |
| 400 | 50 | 0.025 | 0.00098 | |
| Mesh size and wire diameter can be customized | ||||
● Strong Corrosion Resistance: Phosphor bronze mesh performs well in a variety of wet and corrosive environments and is suitable for harsh environments.
● Higher Strength and Hardness: Phosphor bronze mesh has stronger mechanical properties than pure copper mesh and is suitable for high-strength applications.
● Good Wear Resistance: Phosphor bronze material is more wear-resistant than other copper alloys and is suitable for applications requiring a longer service life.
● Excellent Electrical Properties: Phosphor bronze mesh can provide stable performance in electrical applications that require moderate electrical and thermal conductivity.
● Beautiful Appearance: Phosphor bronze has a golden luster and is widely used in decoration and artwork.
Mechanical Protection
● Phosphor bronze mesh is often used as a protective mesh for mechanical equipment due to its high wear resistance and strength. It can prevent debris, dust, particles, etc. from entering the interior of the equipment.

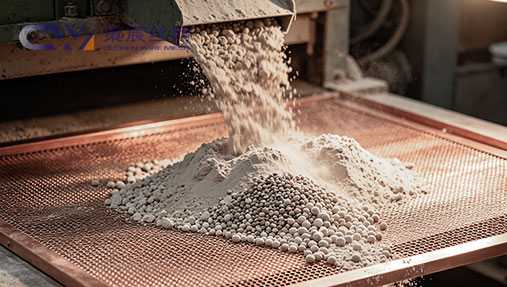

Filtration and Screening
● Phosphor bronze mesh is often used for filtering liquids and gases, such as liquid filtration and air filtration in the petroleum, chemical, and pharmaceutical industries. It is suitable for filtering substances that require higher precision, such as particles and particles.

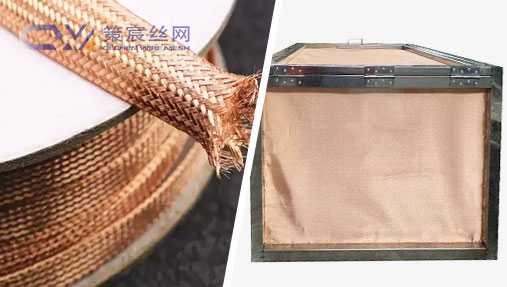

Electronic Applications
● Phosphor bronze mesh is often used in electrical equipment due to its excellent conductivity and corrosion resistance, such as electromagnetic shielding, grounding grid, etc.

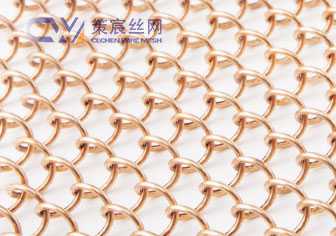

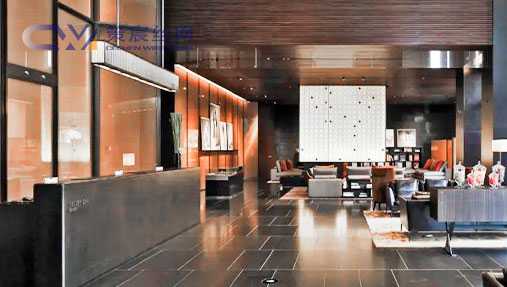

Architecture and Decoration
● Phosphor bronze mesh has good aesthetics and is often used in architectural decoration and artwork production, especially in some high-end decorations and artworks.
Radiator and Heat Exchanger
● Phosphor bronze mesh is also often used in thermal management equipment such as radiators and heat exchangers due to its good thermal conductivity, helping to improve the thermal efficiency of the equipment.
Why Choose Cechen
We are a premium manufacturer of Phosphor Bronze Wire Mesh, committed to providing high-quality wire mesh solutions to customers around the world.
● High-quality phosphor bronze materials
● Advanced production technology and equipment
● Customized services
● Global services and fast delivery
We not only provide high-quality phosphor bronze mesh products, but also provide customers with comprehensive pre-sales consultation and after-sales services. If you have any needs or customization requirements for phosphor bronze mesh, please feel free to contact us. Our professional team will provide detailed product information, technical support and quotations according to your specific needs to ensure the most suitable solution for your project.
